Waterpump - Thermostat for BMW 5 Series E39 M5 (2003)

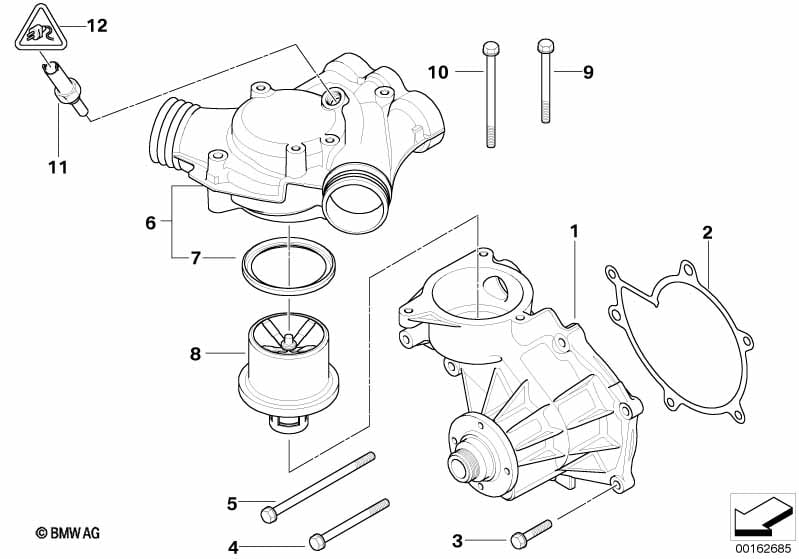

This Waterpump - Thermostat technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant pump, mechanical | 1 | 11511407113 | Shop at ECS Tuning | ||||||
| 02 | Gasket Steel | 1 | 11511406765 | $5.17 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X25-ZNNIV SI | 3 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X65-Z1 | 1 | 11141438558 | $0.72 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M6X100-Z1 | 1 | 07119902600 | $7.39 | Shop at ECS Tuning | ||||
| 06 | Thermostat housing | 1 | 11531406762 | $229.06 | +core | Shop at ECS Tuning | ||||
| 07 | Gasket ring | 1 | 11531312287 | $34.94 | Shop at ECS Tuning | |||||
| 08 | Thermostat | 79CEL | 1 | 11537835558 | $137.62 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X60-Z1 | 2 | 11141747632 | $0.77 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X80-U1-8.8 | 1 | 07119906085 | Shop at ECS Tuning | |||||
| 11 | Double temperature switch | 1 | 13621703993 | $21.80 | +core | Shop at ECS Tuning | ||||
| 12 | Plug housing | 4 POL. | 1 | 12521703571 | $3.07 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Circular connector | 0,5- 1,0 MM² | 4 | 61130007657 | $4.07 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | 0,75-1,0MM² | 4 | 12521748973 | $0.13 | Shop at ECS Tuning | ||||
