Exhaust manifold for BMW 5 Series E39 M5

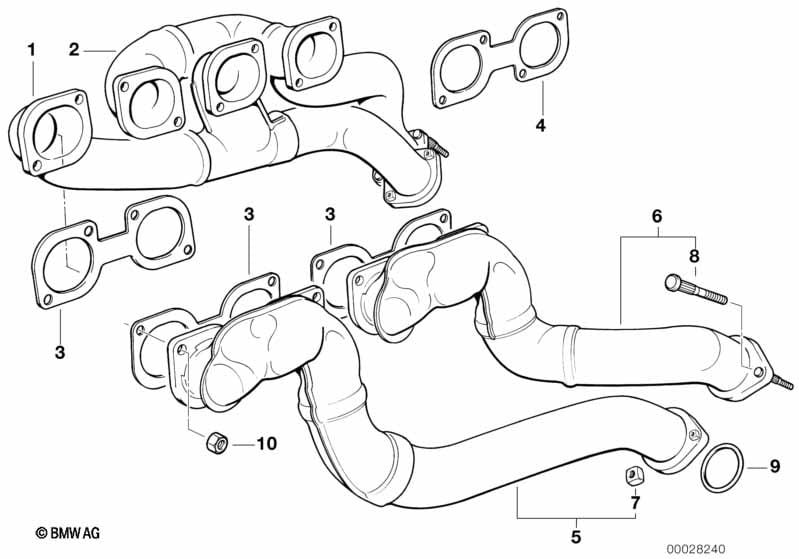

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold | ZYL.1+3 | 1 | 11621439928 | $415.19 | ENDED | Shop at ECS Tuning | |||
| 02 | Exhaust manifold | ZYL.2+4 | 1 | 11627832292 | $415.19 | Shop at ECS Tuning | ||||
| 03 | Gasket Asbestos Free | 3 | 11627505789 | $10.94 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Collar nut | M8 | 12 | 11627509731 | $4.18 | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 1 | 11627509677 | $10.94 | Shop at ECS Tuning | |||||
| 05 | Exhaust manifold | ZYL.5+6 | 1 | 11621439929 | $415.19 | Shop at ECS Tuning | ||||
| 06 | Exhaust manifold | ZYL.7+8 | 1 | 11627832972 | $415.19 | Shop at ECS Tuning | ||||
| 07 | Square nut | M8 | 4 | 11621741172 | $2.40 | Shop at ECS Tuning | ||||
| 08 | Knurled bolt | 4 | 11621704717 | $2.43 | Shop at ECS Tuning | |||||
| 09 | Gasket ring | 2 | 18301728734 | $11.80 | Shop at ECS Tuning | |||||
| 10 | Collar nut | M8 | 16 | 18107523805 | $2.55 | Shop at ECS Tuning | ||||
