Emission control-air pump for BMW 5 Series E39 M5 (2003)

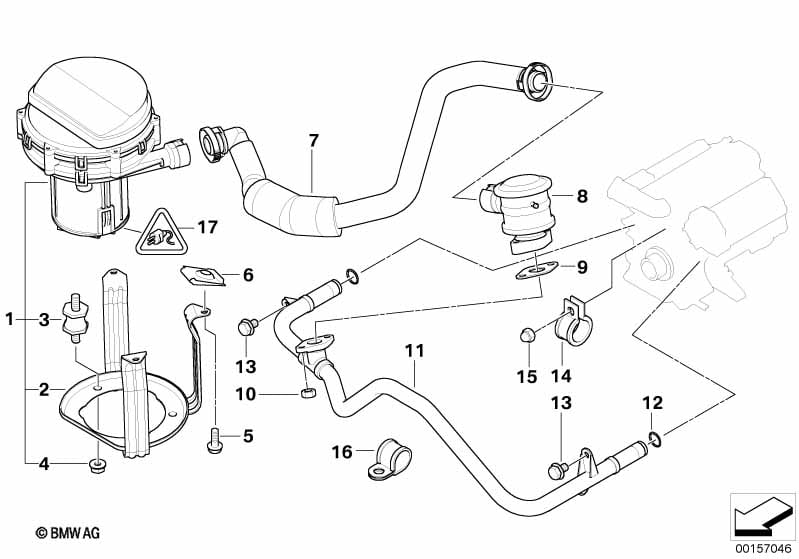

This Emission control-air pump technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air pump | 1 | 11721433958 | $399.52 | Shop at ECS Tuning | |||||
| 02 | Holder | 1 | 11721742479 | $28.29 | Shop at ECS Tuning | |||||
| 03 | Rubber Mounting | M6 | 3 | 11727559515 | $15.60 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Hex head screw | ST6,3X16-C-ZN | 3 | 07119916822 | $0.20 | Shop at ECS Tuning | ||||
| 06 | Body nut | ST6,3-1-ZNS3 | 3 | 07129904231 | Shop at ECS Tuning | |||||
| 07 | Pressure hose assy | 1 | 11721407017 | $34.29 | Shop at ECS Tuning | |||||
| 08 | Shut-off valve | TLEV | 1 | 11721433713 | $92.78 | Shop at ECS Tuning | ||||
| 09 | Gasket Asbestos Free | 1 | 11727505259 | $6.08 | Shop at ECS Tuning | |||||
| 10 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Secondary air line | 1 | 11721406708 | $170.76 | Shop at ECS Tuning | |||||
| 12 | O-ring | 14X1,8 | 2 | 07119901511 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Clamp | D=18/6,4 | 1 | 64503450202 | $3.12 | Shop at ECS Tuning | ||||
| 15 | Cap nut | M6 | 1 | 11121401517 | $4.50 | Shop at ECS Tuning | ||||
| 16 | Clamp | D=18/6,4 | 1 | 64503450202 | $3.12 | Shop at ECS Tuning | ||||
| 17 | Socket housing | 2 POL. | 1 | 61138352552 | $2.70 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 ELA with cable | 2,5-4,0 MM² AG | 2 | 61132471442 | Shop at ECS Tuning | |||||
| -- | Single conductor seal | 4.0MM² | 1 | 61138352924 | $0.28 | Shop at ECS Tuning | ||||
