Cylinder Head Vanos for BMW 5 Series E39 M5 (2003)

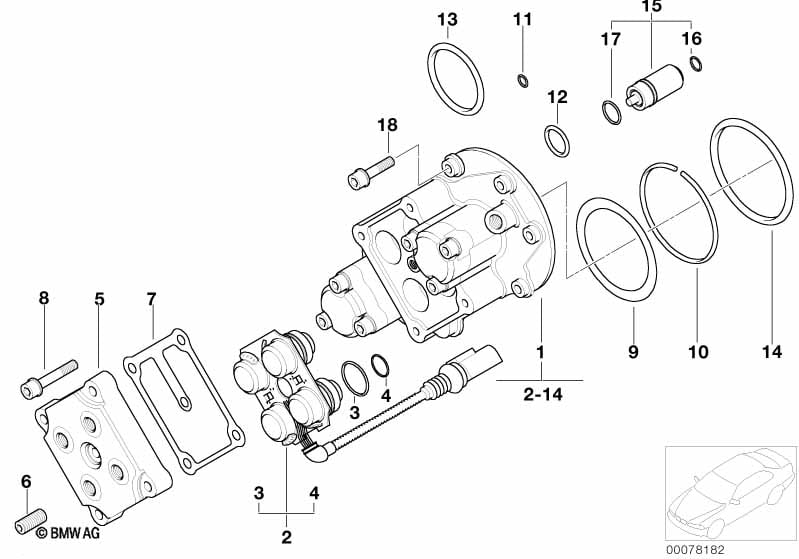

This Cylinder Head Vanos technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Adjuster unit | ZYL. 1-4 | 1 | 11367831486 | $2554.60 | Shop at ECS Tuning | ||||
| 01 | Adjuster unit | ZYL. 5-8 | 1 | 11367831487 | $2554.60 | Shop at ECS Tuning | ||||
| 02 | Solenoid valve (SOLV) | 2 | 10/1999 | 11367831450 | $524.10 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Cover with threaded holes | X | 10/1999 | 11367831684 | $58.52 | Shop at ECS Tuning | ||||
| 03 | O-ring | 8 | 11367830828 | $2.21 | Shop at ECS Tuning | |||||
| 04 | O-ring | 8 | 11367830829 | $1.71 | Shop at ECS Tuning | |||||
| 05 | Cover with threaded holes | 2 | 10/1999 | 11367831684 | $58.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Grub screw | 2 | 10/1999 | 11367831134 | $3.23 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Solenoid valve (SOLV) | X | 10/1999 | 11367831450 | $524.10 | ENDED | Shop at ECS Tuning | |||
| 06 | Grub screw | 8 | 11367831134 | $3.23 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Cover with threaded holes | X | 11367831684 | $58.52 | Shop at ECS Tuning | |||||
| 07 | Gasket Asbestos Free | 2 | 11361406838 | $8.69 | Shop at ECS Tuning | |||||
| 08 | Fillister head with washer | M7X1X35 | 10 | 11367830301 | $1.93 | Shop at ECS Tuning | ||||
| 09 | Washer | 2 | 11361406944 | $3.23 | Shop at ECS Tuning | |||||
| 10 | Lock Ring | 80X2,5 | 2 | 07119934749 | $0.96 | Shop at ECS Tuning | ||||
| 11 | O-ring | 10,0X2,0MM | 2 | 11311317318 | $1.27 | Shop at ECS Tuning | ||||
| 12 | O-ring | 25X2MM | 2 | 11361406377 | $1.81 | Shop at ECS Tuning | ||||
| 13 | O-ring | 57,0X3,0MM | 2 | 11311317732 | $5.46 | Shop at ECS Tuning | ||||
| 14 | O-ring | 85X2MM | 2 | 11361406868 | $5.65 | Shop at ECS Tuning | ||||
| 15 | Support, valve | 2 | 11361407095 | $107.19 | Shop at ECS Tuning | |||||
| 16 | O-ring | 10,0X2,0MM | 2 | 11311317318 | $1.27 | Shop at ECS Tuning | ||||
| 17 | O-ring | 16X2MM | 2 | 11411306082 | $2.42 | Shop at ECS Tuning | ||||
| 18 | Internal Torx screw with washer | M6X25-U1-8.8 | 28 | 07129905558 | $0.44 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
