Oil pan upper part and connecting lines for BMW 5 Series E39 M5 (1999)

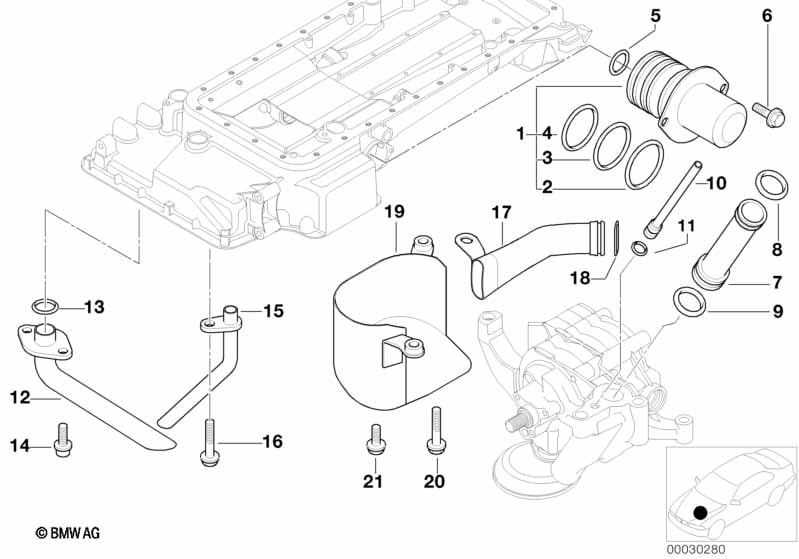

This Oil pan upper part and connecting lines technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Solenoid valve (SOLV) | 2 | 11131407697 | $398.16 | +core | Shop at ECS Tuning | ||||
| 02 | O-ring | 39,34X2,62MM | 2 | 11137830114 | $5.85 | Shop at ECS Tuning | ||||
| 03 | O-ring | 38X2,5MM | 2 | 11137830113 | $4.15 | Shop at ECS Tuning | ||||
| 04 | O-ring | 37X2,5MM | 2 | 11137830112 | $3.31 | Shop at ECS Tuning | ||||
| 05 | O-ring | 20X2,5MM | 2 | 11441406693 | $2.92 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X16-U1-8.8 | 4 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Oil pipe | 1 | 11131406863 | $16.50 | Shop at ECS Tuning | |||||
| 08 | O-ring | 18,0X2,5MM | 1 | 11421741129 | $1.81 | Shop at ECS Tuning | ||||
| 09 | O-ring | 21X2,5MM | 1 | 11421406872 | $1.27 | Shop at ECS Tuning | ||||
| 10 | Oil pipe | 1 | 11131406864 | $14.80 | Shop at ECS Tuning | |||||
| 11 | O-ring | 6,0X2,5 | 1 | 11421713597 | $1.29 | Shop at ECS Tuning | ||||
| 12 | Oil pipe outlet | 1 | 11411407543 | $27.38 | +core | Shop at ECS Tuning | ||||
| 13 | O-ring | 15X4,0MM | 1 | 11421407015 | $5.79 | Shop at ECS Tuning | ||||
| 14 | Fillister head with washer | M6X16-U1-PHR | 2 | 07119906059 | Shop at ECS Tuning | |||||
| 15 | Oil pipe outlet | 1 | 11131407557 | $31.68 | +core | Shop at ECS Tuning | ||||
| 16 | Hex bolt with washer | M6X30-ZNNIV SI | 1 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 17 | Oil pipe outlet | 1 | 11411407713 | $44.06 | +core | Shop at ECS Tuning | ||||
| 18 | O-ring | 22X2 | 1 | 11411304178 | $1.83 | Shop at ECS Tuning | ||||
| 19 | Baffle plate | 1 | 11131407712 | $18.95 | Shop at ECS Tuning | |||||
| 20 | Hex bolt | M6X28-8.8-ZNS | 2 | 07119913021 | $2.30 | Shop at ECS Tuning | ||||
| 21 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 M5 Oil pan upper part and connecting lines?
- This technical diagram illustrates the Oil pan upper part and connecting lines within the Engine group for the 5 Series E39 M5 produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Solenoid valve (SOLV) (Part #11131407697).
- Which models use the hardware listed in this Oil pan upper part and connecting lines?
- The hardware and components featured in the Oil pan upper part and connecting lines are specific to the 5 Series E39 M5 produced during 1999. These technical specifications ensure that parts like the Solenoid valve (SOLV) (11131407697) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pan upper part and connecting lines assembly?
- Each item in the Oil pan upper part and connecting lines corresponds to the numbered list below the illustration. For the 5 Series E39 M5, you can identify the Solenoid valve (SOLV) by locating its position on the schematic, which then links to the official BMW part number 11131407697 for the Engine section.
