Belt Drive-Vibration Damper for BMW 7 Series E65 740d (2005)

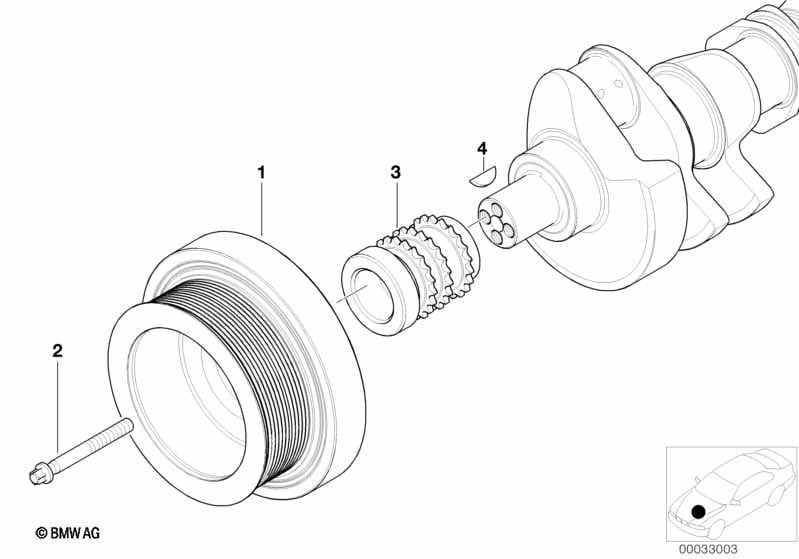

This Belt Drive-Vibration Damper technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vibration damper | 1 | 11237789612 | Shop at ECS Tuning | ||||||
| 02 | Torx bolt | M10X120 | 4 | 11232247931 | Shop at ECS Tuning | |||||
| 03 | Crankshaft sprocket | 1 | 11212248475 | Shop at ECS Tuning | ||||||
| 04 | Woodruff key | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 740d Belt Drive-Vibration Damper?
- This technical diagram illustrates the Belt Drive-Vibration Damper within the Engine group for the 7 Series E65 740d produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Vibration damper (Part #11237789612).
- Which models use the hardware listed in this Belt Drive-Vibration Damper?
- The hardware and components featured in the Belt Drive-Vibration Damper are specific to the 7 Series E65 740d produced during 2005. These technical specifications ensure that parts like the Vibration damper (11237789612) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Belt Drive-Vibration Damper assembly?
- Each item in the Belt Drive-Vibration Damper corresponds to the numbered list below the illustration. For the 7 Series E65 740d, you can identify the Vibration damper by locating its position on the schematic, which then links to the official BMW part number 11237789612 for the Engine section.
