Engine Block Mounting Parts for BMW X5 E53 4.4i

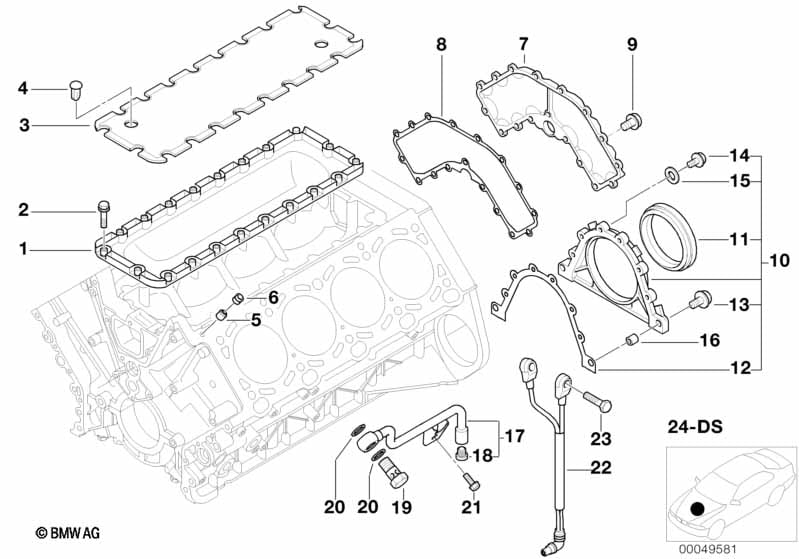

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the X5 E53 4.4i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | cap with seal | 1 | 11141742042 | $76.03 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M6X25-ZNNIV SI | 20 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 11141736106 | $16.37 | Shop at ECS Tuning | |||||
| 04 | Covering cap | 4 | 13711741097 | $0.25 | Shop at ECS Tuning | |||||
| 05 | non-return valve | 2 | 11111734667 | $11.15 | Shop at ECS Tuning | |||||
| 06 | Spacer sleeve | 2 | 11111739185 | $3.60 | Shop at ECS Tuning | |||||
| 07 | Cover | 1 | 11141729832 | $52.90 | Shop at ECS Tuning | |||||
| 08 | Gasket Asbestos Free | 1 | 11141729836 | $8.31 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M6X18-U1 | 17 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Set of covers | 1 | 11141436109 | $93.61 | +core | Shop at ECS Tuning | ||||
| 11 | Shaft seal | 100X125X13 | 1 | 11141710247 | $64.06 | Shop at ECS Tuning | ||||
| 12 | Gasket Asbestos Free | 1 | 11141736521 | $2.62 | Shop at ECS Tuning | |||||
| 13 | Hex bolt with washer | M8X35-Z3 | 2 | 07119912492 | $0.33 | Shop at ECS Tuning | ||||
| 14 | Torx bolt | M6X35 | 6 | 11141433439 | $0.72 | Shop at ECS Tuning | ||||
| 15 | Washer-gasket | 6 | 11141435968 | $2.45 | Shop at ECS Tuning | |||||
| 16 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 17 | Outlet pipe | 1 | 11117504177 | $47.99 | ENDED, +core | Shop at ECS Tuning | ||||
| 18 | Screw Plug With Gasket Ring | M10X1 | 1 | 24117552351 | $4.60 | Shop at ECS Tuning | ||||
| 19 | Hollow bolt | M14X1,5X26 | 1 | 32416852469 | Shop at ECS Tuning | |||||
| 19 | Screw plug | M14X1,5-ZNNIV | 1 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Gasket ring | A14X20-AL | 1 | 07119963225 | $0.11 | Shop at ECS Tuning | ||||
| 20 | Gasket ring | A14X20-AL | 2 | 07119963225 | $0.11 | Shop at ECS Tuning | ||||
| 21 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 22 | Ping Sensor | 2 | 13627568421 | $90.58 | Shop at ECS Tuning | |||||
| 23 | Hex bolt | M8X30-8.8-ZNS3 | 4 | 07119902901 | $0.25 | Shop at ECS Tuning | ||||
| 24 | Gasket Set Engine Block Asbesto Free | 1 | 11110008361 | $223.72 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
