Crankcase-Ventilation/oil separator for BMW X5 E53 4.4i

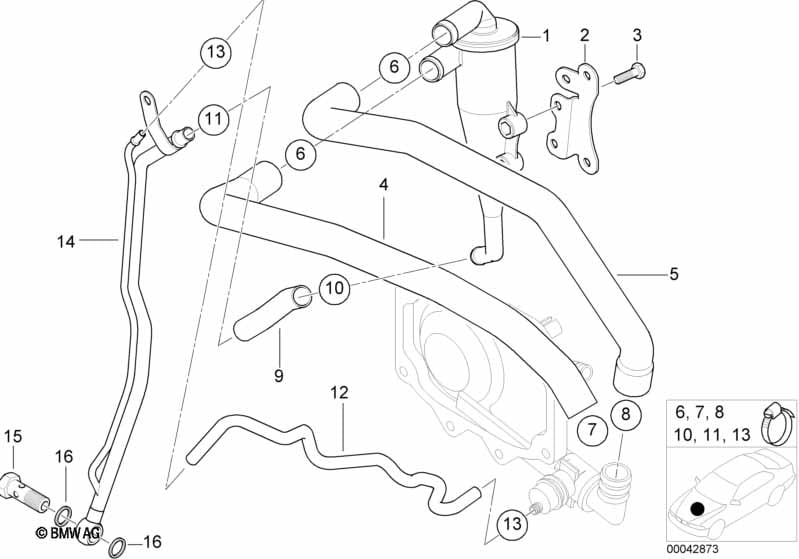

This Crankcase-Ventilation/oil separator technical drawing provides a detailed breakdown of the assembly for the X5 E53 4.4i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil separator | 1 | 11151705237 | $33.39 | Shop at ECS Tuning | |||||
| 02 | Holder | 1 | 11151705238 | $3.37 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X12 | 2 | 07119913013 | $1.22 | Shop at ECS Tuning | ||||

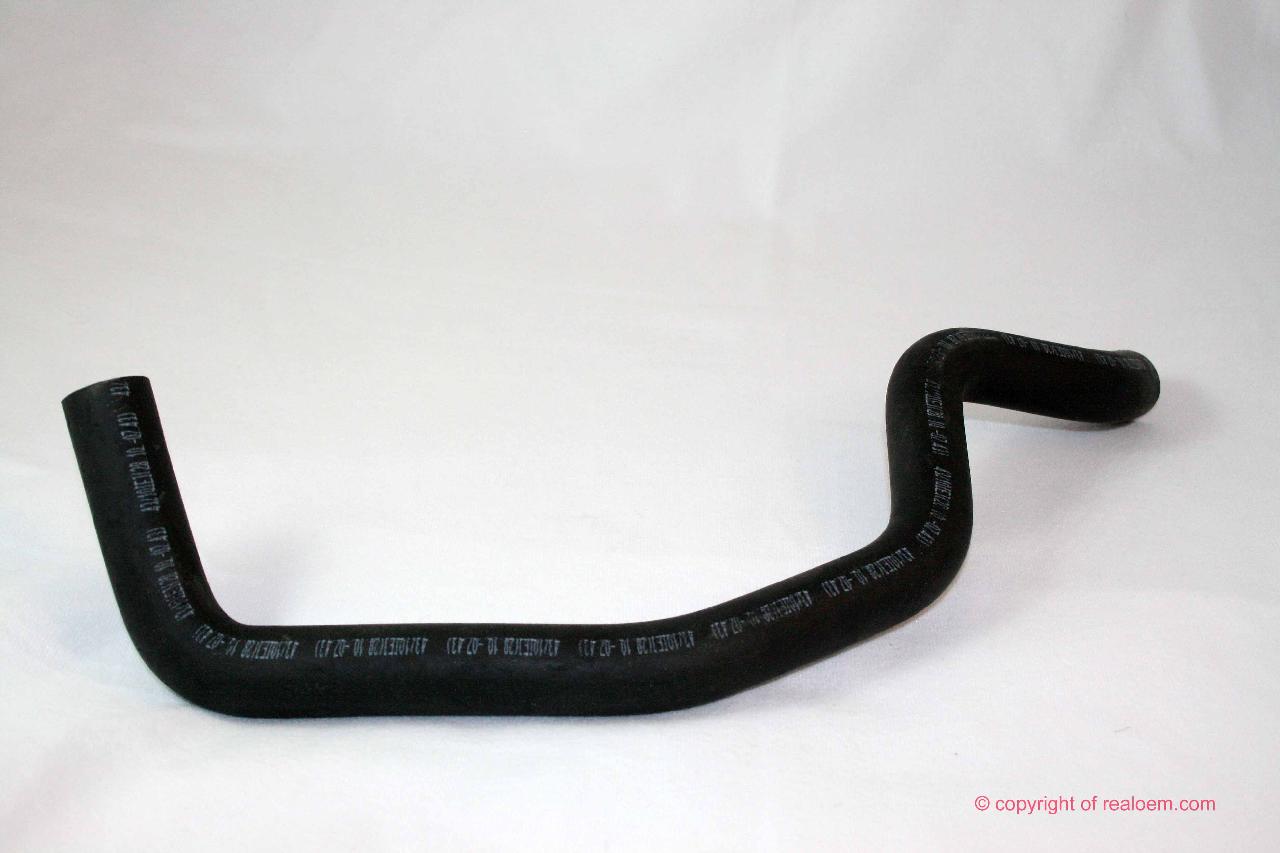

| 04 | Vent hose | 1 | 11157556837 | $30.16 | +core | Shop at ECS Tuning | ||||
| 05 | Vent hose | 1 | 11157556838 | $30.16 | +core | Shop at ECS Tuning | ||||
| 06 | Hose clamp | 23,9-27,1 | 2 | 11631716970 | $0.79 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 09 | Oil return hose | 1 | 11151438302 | $5.12 | Shop at ECS Tuning | |||||
| 10 | Hose clamp | 15.5-18MM | 1 | 16131179065 | $0.67 | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L15-19 | 1 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 12 | Oil return hose | 1 | 11157560068 | $10.13 | Shop at ECS Tuning | |||||
| 13 | Hose clamp | 8-9.5MM | 2 | 16131379229 | $0.72 | Shop at ECS Tuning | ||||
| 14 | Oilreturnpipe | 1 | 11157520742 | $156.13 | Shop at ECS Tuning | |||||
| 15 | Hollow bolt | M12X1,5X33 | 1 | 11151438305 | $5.80 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | 12X15,5 | 2 | 13821432344 | $0.53 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
