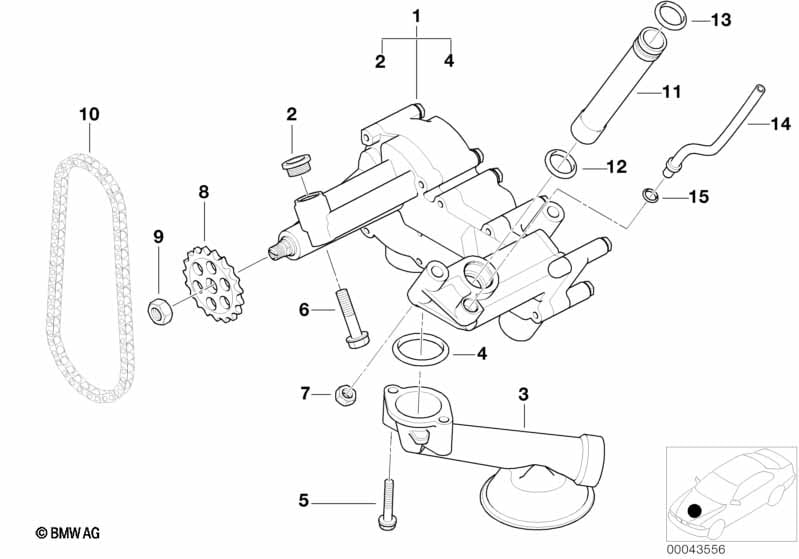

Lubrication system/Oil pump with drive for BMW X5 E53 4.4i
This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the X5 E53 4.4i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump | 1 | 11411439260 | $405.82 | +core | Shop at ECS Tuning | ||||
| 02 | Guide support | 1 | 11411733963 | $3.37 | Shop at ECS Tuning | |||||
| 03 | Suction pipe | 1 | 11419487150 | ENDED | Shop at ECS Tuning | |||||
| 04 | O-ring | 1 | 11421435020 | $1.27 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X40 ZNNIV SI | 2 | 07119904525 | $1.09 | Shop at ECS Tuning | ||||
| 06 | Self-locking hex bolt | M8X45-Z1 | 1 | 11417508400 | $1.23 | Shop at ECS Tuning | ||||
| 07 | Hex nut | 2 | 11411742462 | $0.28 | Shop at ECS Tuning | |||||
| 08 | Sprocket | 1 | 11411733962 | $30.94 | Shop at ECS Tuning | |||||
| 09 | Hex nut | M10 | 1 | 11417549652 | $2.85 | Shop at ECS Tuning | ||||
| 10 | Chain | 1 | 11417576916 | $30.08 | Shop at ECS Tuning | |||||
| 11 | Oil pipe | 1 | 11421736260 | $15.37 | Shop at ECS Tuning | |||||
| 12 | O-ring | 18,0X2,5MM | 1 | 11421741129 | $1.81 | Shop at ECS Tuning | ||||
| 13 | O-ring | 21X2,4MM | 1 | 11421288890 | $1.37 | Shop at ECS Tuning | ||||
| 14 | Oil pipe | 1 | 11421435022 | $5.11 | Shop at ECS Tuning | |||||
| 15 | O-ring | 6,0X2,5 | 1 | 11421713597 | $1.29 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
