Lubrication system-Oil filter for BMW X5 E53 4.4i

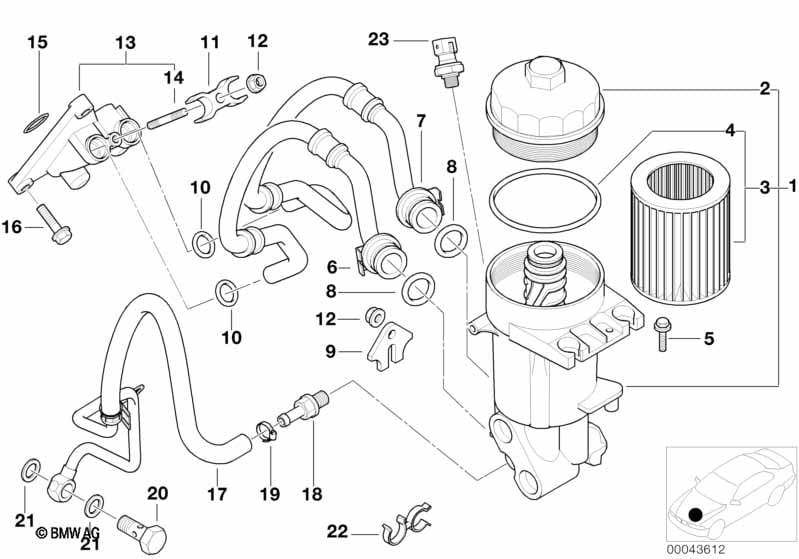

This Lubrication system-Oil filter technical drawing provides a detailed breakdown of the assembly for the X5 E53 4.4i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter without oil cooler connection | 1 | 11427511169 | $343.83 | Shop at ECS Tuning | |||||
| 02 | Oil filter cover | 1 | 11421736674 | $26.45 | Shop at ECS Tuning | |||||
| 03 | Oil filter | 1 | 11427510717 | $19.71 | Shop at ECS Tuning | |||||
| 04 | O-ring | 91X4 | 1 | 11421741000 | $5.04 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M6X20-U2-8.8 | 2 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 06 | Pressure hose assy inlet | 1 | 11427504294 | $92.10 | +core | Shop at ECS Tuning | ||||
| 07 | Pressure hose assy outlet | 1 | 11427504295 | $109.39 | +core | Shop at ECS Tuning | ||||
| 08 | O-ring | 23,0X3,0 | 2 | 11421702916 | $2.38 | Shop at ECS Tuning | ||||
| 09 | Plate | 1 | 11421437552 | $0.65 | Shop at ECS Tuning | |||||
| 10 | O-ring | 14,0X2,0 | 2 | 11421702905 | $1.19 | Shop at ECS Tuning | ||||
| 11 | Holder | 1 | 11421702697 | $5.46 | Shop at ECS Tuning | |||||
| 12 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 13 | Connection flange | 1 | 11421435096 | $31.28 | +core | Shop at ECS Tuning | ||||
| 14 | Stud bolt | M8X40 | 1 | 07129903964 | Shop at ECS Tuning | |||||
| 15 | O-ring | 22X4 | 1 | 12311718712 | $1.59 | Shop at ECS Tuning | ||||
| 17 | Oil pipe outlet | 1 | 11427511028 | $78.14 | +core | Shop at ECS Tuning | ||||
| 18 | Connector | M14X1,5X44,5 | 1 | 13321287132 | $4.07 | ENDED | Shop at ECS Tuning | |||
| 19 | Hose clamp | L15-19 | 1 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 20 | Hollow bolt | M14X1,5X26 | 1 | 32416852469 | Shop at ECS Tuning | |||||
| 21 | Gasket ring | A14X18-AL | 2 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 22 | Hose clamp | 1 | 11722241129 | $2.30 | Shop at ECS Tuning | |||||
| 23 | Oil pressure switch | M12X1,5 | 1 | 12618611273 | Shop at ECS Tuning |
