Exhaust manifold for BMW X5 E53 4.4i

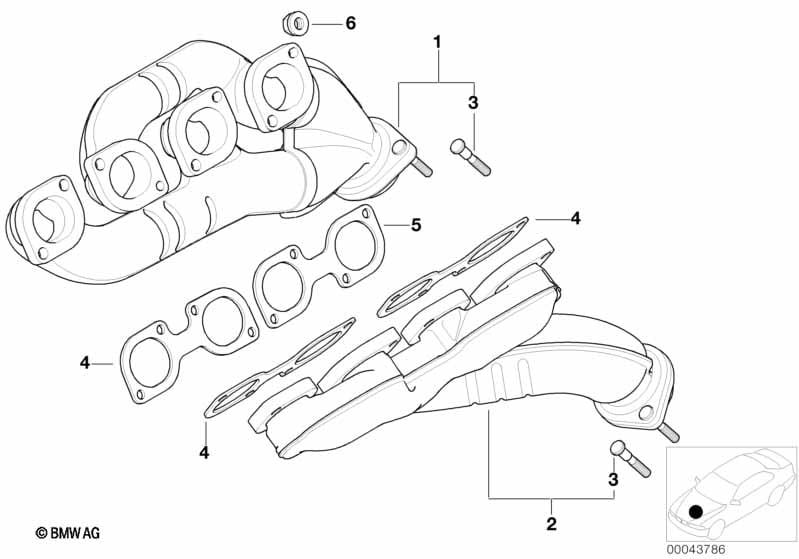

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the X5 E53 4.4i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold | ZYL.1-4 | 1 | 11627500483 | $415.19 | Shop at ECS Tuning | ||||
| 02 | Exhaust manifold | ZYL.5-8 | 1 | 11627500484 | $415.19 | Shop at ECS Tuning | ||||
| 03 | Knurled bolt | 4 | 11621704717 | $2.43 | Shop at ECS Tuning | |||||
| 04 | Gasket Asbestos Free | 3 | 11627505789 | $10.94 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Collar nut | M8 | 12 | 11627509731 | $4.18 | Shop at ECS Tuning | ||||
| 05 | Gasket Asbestos Free | 1 | 11627509677 | $10.94 | Shop at ECS Tuning | |||||
| 06 | Collar nut | M8 | 16 | 18107523805 | $2.55 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW X5 E53 4.4i Exhaust manifold?
- This technical diagram illustrates the Exhaust manifold within the Engine group for the X5 E53 4.4i. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust manifold (Part #11627500483).
- Which models use the hardware listed in this Exhaust manifold?
- The hardware and components featured in the Exhaust manifold are specific to the X5 E53 4.4i. These technical specifications ensure that parts like the Exhaust manifold (11627500483) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust manifold assembly?
- Each item in the Exhaust manifold corresponds to the numbered list below the illustration. For the X5 E53 4.4i, you can identify the Exhaust manifold by locating its position on the schematic, which then links to the official BMW part number 11627500483 for the Engine section.
