Emission control-air pump for BMW X5 E53 4.4i

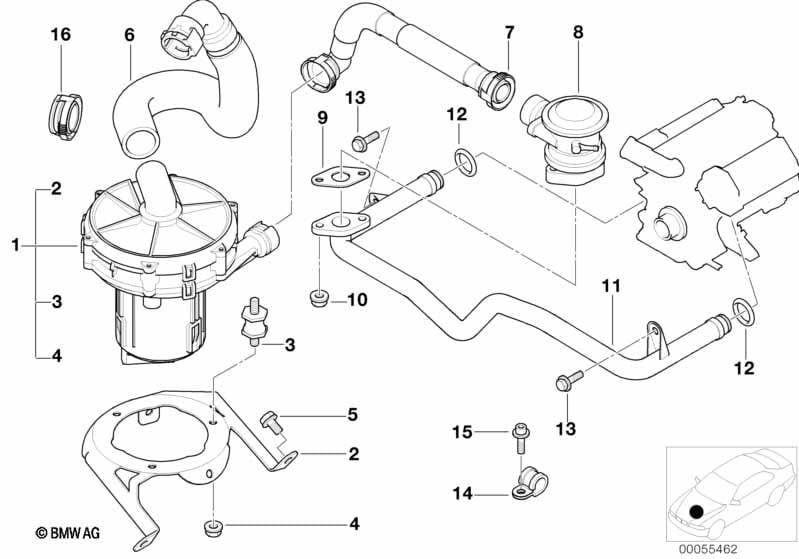

This Emission control-air pump technical drawing provides a detailed breakdown of the assembly for the X5 E53 4.4i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air pump | 1 | 11721437910 | $399.52 | Shop at ECS Tuning | |||||
| 02 | Holder | 1 | 11721437912 | $20.48 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rubber Mounting | M6 | 3 | 11727559515 | $15.60 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Suction pipe | 1 | 11721438104 | $34.29 | Shop at ECS Tuning | |||||
| 07 | Pressure hose assy | 1 | 11721438102 | $22.73 | Shop at ECS Tuning | |||||
| 08 | Valve | 1 | 11721707619 | $114.19 | Shop at ECS Tuning | |||||
| 09 | Gasket Asbestos Free | 1 | 11727505259 | $6.08 | Shop at ECS Tuning | |||||
| 10 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Secondary air line | 1 | 11721433344 | $65.56 | +core | Shop at ECS Tuning | ||||
| 12 | O-ring | 14X1,8 | 2 | 07119901511 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Clamp | D=18/6,4 | 1 | 64503450202 | $3.12 | Shop at ECS Tuning | ||||
| 15 | Fillister head with washer | M6X16-U1-PHR | 1 | 07119906059 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
