Oil pan/oil level indicator for BMW 7 Series E38 730d (2001)

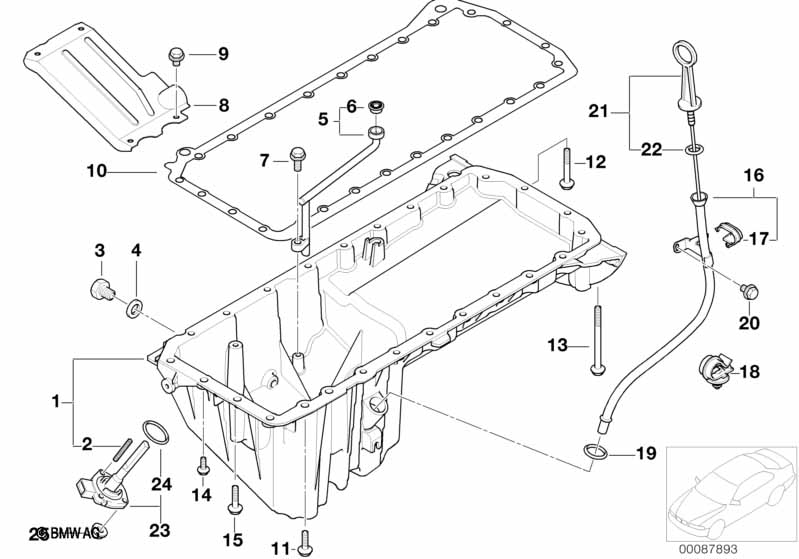

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11132246907 | +core | Shop at ECS Tuning | |||||
| 02 | Stud bolt | M6X30-ZNNIV SI | 3 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Return pipe | 1 | 11132247756 | ENDED | Shop at ECS Tuning | |||||
| 06 | Gasket ring | 1 | 11132247759 | Shop at ECS Tuning | ||||||
| 07 | Collar screw | M6X25 | 1 | 11721742766 | $7.93 | Shop at ECS Tuning | ||||
| 08 | Oil deflector | 1 | 11132249614 | Shop at ECS Tuning | ||||||
| 09 | Collar screw | M6 X 16 | 4 | 12517805605 | $0.58 | Shop at ECS Tuning | ||||
| 10 | Gasket, oil pan | 1 | 11130149329 | $48.50 | Shop at ECS Tuning | |||||
| 11 | Torx bolt | M6X22 | 17 | 11137800619 | $0.67 | Shop at ECS Tuning | ||||
| 12 | Torx bolt | M6X60-ZNNIV SI | 2 | 11137800622 | $1.08 | Shop at ECS Tuning | ||||
| 13 | Torx bolt | M6X100 | 2 | 11137800623 | $1.65 | Shop at ECS Tuning | ||||
| 14 | ASA-Bolt | M8X30 | 3 | 11138592611 | Shop at ECS Tuning | |||||
| 15 | Torx bolt | M8X80 | 1 | 11137800624 | Shop at ECS Tuning | |||||
| 16 | Guide tube | 1 | 11432247936 | +core | Shop at ECS Tuning | |||||
| 17 | Cable holder | 13,5X23,5MM | 1 | 61131269331 | $1.22 | ENDED | Shop at ECS Tuning | |||
| 18 | Clip retainer | 1 | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
| 19 | O-ring | 14X3 | 1 | 11437794698 | $1.19 | Shop at ECS Tuning | ||||
| 20 | Hex bolt with washer | M6X14-U1-8.8 | 1 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| 20 | Torx bolt | M6X19 | 1 | 61137786715 | ENDED | Shop at ECS Tuning | ||||
| 21 | Dipstick | 1 | 11437785143 | Shop at ECS Tuning | ||||||
| 22 | O-ring | 9X2,2 | 1 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
| 23 | Oil levelling sensor | 1 | 12617508003 | $163.50 | Shop at ECS Tuning | |||||
| 24 | Gasket ring | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 25 | Hex nut | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
