Oil pan upper part, oil level indicator for BMW X5 E53 4.4i

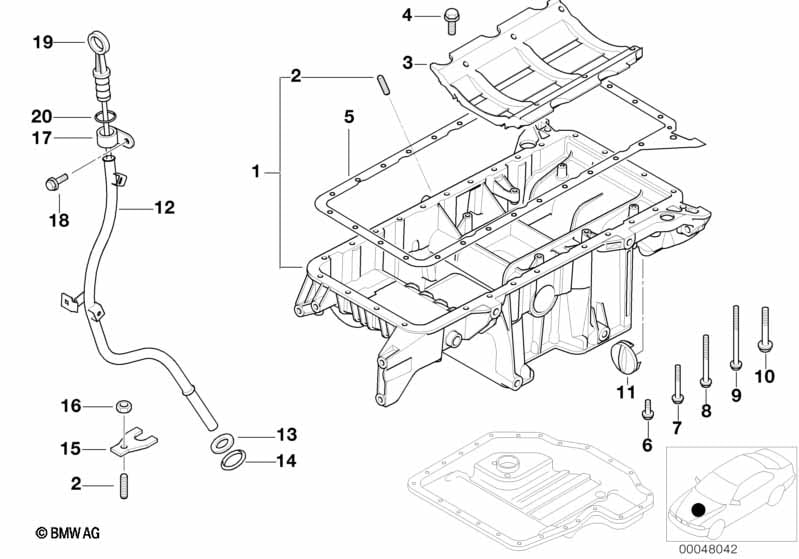

This Oil pan upper part, oil level indicator technical drawing provides a detailed breakdown of the assembly for the X5 E53 4.4i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pan upper part | 1 | 11137500524 | $582.49 | +core | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | Stud bolt | M6X25-ZN | 1 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Oil deflector | 1 | 11131745772 | $32.22 | +core | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X16-U1-8.8 | 6 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Gasket Steel | 1 | 11137500260 | $48.50 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex bolt with washer | M6X55-Z1 | 6 | 07119902598 | $1.05 | Shop at ECS Tuning | ||||
| -- | Hex bolt with washer | M6X100-Z1 | 2 | 07119902600 | $7.39 | Shop at ECS Tuning | ||||
| -- | Hex bolt with washer | M6X78-Z1 | 7 | 07119903316 | $0.85 | Shop at ECS Tuning | ||||
| -- | Hex bolt with washer | M6X20-Z1 | 12 | 07119903850 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X20-Z1 | 12 | 07119903850 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X55-Z1 | 6 | 07119902598 | $1.05 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X78-Z1 | 7 | 07119903316 | $0.85 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X100-Z1 | 2 | 07119902600 | $7.39 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M8X60-Z1 | 2 | 07119902601 | $3.82 | Shop at ECS Tuning | ||||
| 11 | Cover | 1 | 11131731178 | $2.03 | Shop at ECS Tuning | |||||
| 12 | Guide tube | 1 | 11437500364 | $41.50 | ENDED | Shop at ECS Tuning | ||||
| 14 | O-ring | 15,0X5,0 | 1 | 11431707164 | $4.06 | Shop at ECS Tuning | ||||
| 14 | Washer | 1 | 11437838127 | $3.19 | Shop at ECS Tuning | |||||
| 15 | Holder | 1 | 11437840407 | $1.98 | Shop at ECS Tuning | |||||
| 16 | Self-locking hex nut | M6-10 ZN | 1 | 09/2003 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 16 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Clamp | D=16/6,4 | 1 | 12427840406 | $1.52 | Shop at ECS Tuning | ||||
| 18 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 19 | Dipstick | 1 | 11437505454 | $15.30 | Shop at ECS Tuning | |||||
| 20 | O-ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW X5 E53 4.4i Oil pan upper part, oil level indicator?
- This technical diagram illustrates the Oil pan upper part, oil level indicator within the Engine group for the X5 E53 4.4i. It provides a detailed exploded view of the components, identifying key parts such as the Oil pan upper part (Part #11137500524).
- Which models use the hardware listed in this Oil pan upper part, oil level indicator?
- The hardware and components featured in the Oil pan upper part, oil level indicator are specific to the X5 E53 4.4i. These technical specifications ensure that parts like the Oil pan upper part (11137500524) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pan upper part, oil level indicator assembly?
- Each item in the Oil pan upper part, oil level indicator corresponds to the numbered list below the illustration. For the X5 E53 4.4i, you can identify the Oil pan upper part by locating its position on the schematic, which then links to the official BMW part number 11137500524 for the Engine section.
