Cooling System Water Hoses for BMW X5 E53 4.4i

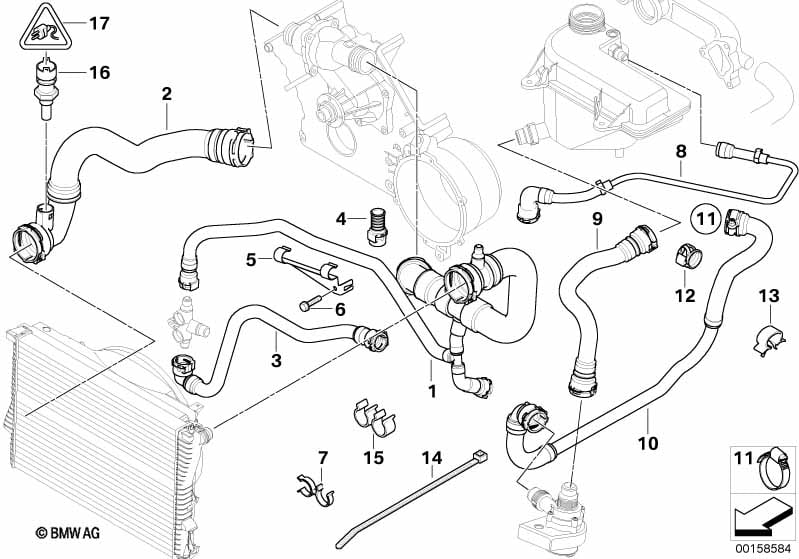

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the X5 E53 4.4i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Heater water hose see main section 17 and 64 |
|||||||||
| 01 | Water hose | 1 | 12/1999 | 11537500746 | $67.93 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Water hose | 1 | 12/1999 | 11537505950 | $18.87 | Shop at ECS Tuning | ||||
| 01 | Water hose | 1 | 12/1999 | 11537500746 | $67.93 | +core | Shop at ECS Tuning | |||
| 02 | Water hose | 1 | 11537500750 | $33.96 | +core | Shop at ECS Tuning | ||||
| 03 | Water hose | 1 | 11537500752 | $18.31 | +core | Shop at ECS Tuning | ||||
| 04 | Blind plug | D=8 | 1 | 11531436850 | $5.25 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | 1 | 11531439133 | $6.12 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X30-Z3 | 2 | 07119913980 | $0.60 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | 1 | 17121439256 | $1.80 | Shop at ECS Tuning | |||||

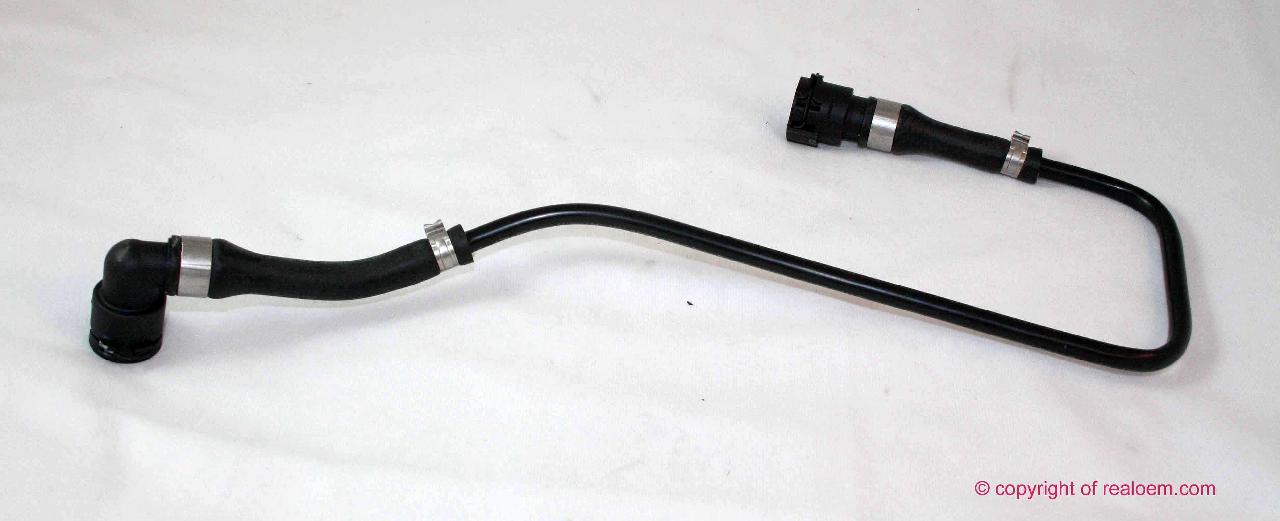

| 08 | Water hose | 1 | 11531439123 | $30.20 | +core | Shop at ECS Tuning | ||||
| 09 | Water hose | 1 | 12/1999 | 11537505950 | $18.87 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Water hose | 1 | 12/1999 | 11537500746 | $67.93 | +core | Shop at ECS Tuning | |||
| 09 | Water hose | 1 | 12/1999 | 11537505950 | $18.87 | Shop at ECS Tuning | ||||
| 10 | Water hose | 1 | 11537505949 | $67.93 | +core | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L28-33 | 2 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | 1 | 12/1999 | 11721134746 | $2.30 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | 1 | 12/1999 | 64218391884 | $0.77 | ENDED | Shop at ECS Tuning | |||
| 13 | Hose clamp | 1 | 17107500744 | $1.18 | Shop at ECS Tuning | |||||
| 13 | Cable holder | D=20MM | 1 | 61131379136 | $1.30 | Shop at ECS Tuning | ||||
| 14 | Cable tie | 1 | 64218375369 | $1.22 | Shop at ECS Tuning | |||||
| 15 | Hose clamp | D=18/20 | 1 | 17221341603 | $1.87 | Shop at ECS Tuning | ||||
| 16 | Temperature sensor, coolant | 1 | 13621433077 | $25.03 | Shop at ECS Tuning | |||||
| 17 | Socket housing | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
