Exhaust manifold with catalyst for BMW 3 Series E46 330i (2005)

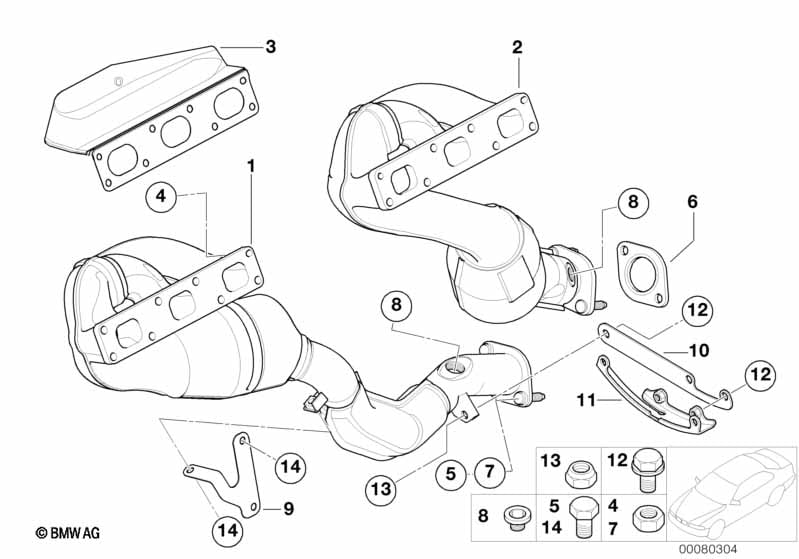

This Exhaust manifold with catalyst technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP exhaust manifold with catalytic conv | ZYL. 1-3 | 1 | 09/2000 | 18407518677 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | RP exhaust manifold with catalytic conv | ZYL. 1-3 | 1 | 09/2000 | 18407509689 | Shop at ECS Tuning | ||||
| For vehicles with EU2 exhaust emissions standard or without catalytic converter |
S168A=Yes S199A=Yes |
|||||||||
| 01 | RP exhaust manifold with catalytic conv | ZYL. 1-3 | 1 | 09/2000 | 18407509691 | Shop at ECS Tuning | ||||
| 02 | RP exhaust manifold with catalytic conv | ZYL. 4-6 | 1 | 09/2000 | 18407518678 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | RP exhaust manifold with catalytic conv | ZYL. 4-6 | 1 | 09/2000 | 18407509690 | Shop at ECS Tuning | ||||
| For vehicles with EU2 exhaust emissions standard or without catalytic converter |
S168A=Yes S199A=Yes |
|||||||||
| 02 | RP exhaust manifold with catalytic conv | ZYL. 4-6 | 1 | 09/2000 | 18407509692 | Shop at ECS Tuning | ||||
| 03 | Gasket w/heat prot.shield asbestosfree | 2 | 05/2002 | 11627522585 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | 16 | 05/2002 | 11721437202 | $0.72 | Shop at ECS Tuning | ||||
| 04 | Hex nut | 16 | 09/2000 | 11721437202 | $0.72 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M10X40-SW16 | 4 | 09/2000 | 11621427586 | $21.57 | Shop at ECS Tuning | |||
| 06 | Flat gasket | 2 | 09/2000 | 18107502346 | $11.93 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M10 | 4 | 09/2000 | 18301737774 | $1.65 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 08 | Screw Plug With Gasket Ring | M18X1,5 | 4 | 09/2000 | 11621437517 | $11.43 | Shop at ECS Tuning | |||
| 09 | Holder | 1 | 09/2000 | 18207507584 | Shop at ECS Tuning | |||||
