Engine block for BMW 3 Series E46 M3

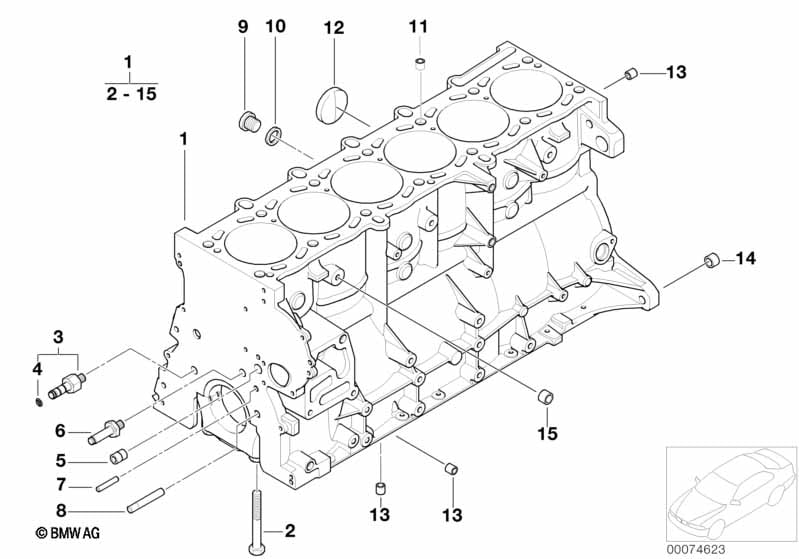

This Engine block technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine block with piston | 1 | 11117838751 | $4790.94 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Primer Loctite 171000 | 4ML | 1 | 83197515683 | $11.90 | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M10X80 | 14 | 11112244286 | $1.03 | Shop at ECS Tuning | ||||
| 03 | Bolt | 1 | 11317830727 | $21.22 | Shop at ECS Tuning | |||||
| 04 | O-ring | 6,7X1,78MM | 1 | 11317830765 | $2.63 | Shop at ECS Tuning | ||||
| 05 | Plug | D=12,0MM | 4 | 04/2001 | 11111268539 | $0.58 | Shop at ECS Tuning | |||
| 05 | Plug | D=12,5MM | 4 | 04/2001 | 11117832956 | $13.88 | Shop at ECS Tuning | |||
| 06 | Bolt | 1 | 11317830763 | $10.62 | Shop at ECS Tuning | |||||
| 07 | Dowel pin | 6X32 | 1 | 07119942169 | $0.21 | ENDED | Shop at ECS Tuning | |||
| 08 | Bolt | 1 | 11111706500 | $4.12 | Shop at ECS Tuning | |||||
| 09 | Screw plug | M14X1,5-ZNNIV | 1 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| 10 | Gasket ring | A14X20-AL | 1 | 07119963225 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Dowel | D=13,5MM | 2 | 11121726243 | $1.62 | Shop at ECS Tuning | ||||
| 12 | Cover lid | D=45MM | 1 | 11111714712 | $3.32 | Shop at ECS Tuning | ||||
| 13 | Dowel | D=10,5MM | 6 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 14 | Dowel | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 15 | Dowel | 8,5X5,5MM | 2 | 13541308127 | $2.08 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
