Engine Block Mounting Parts for BMW 3 Series E46 M3

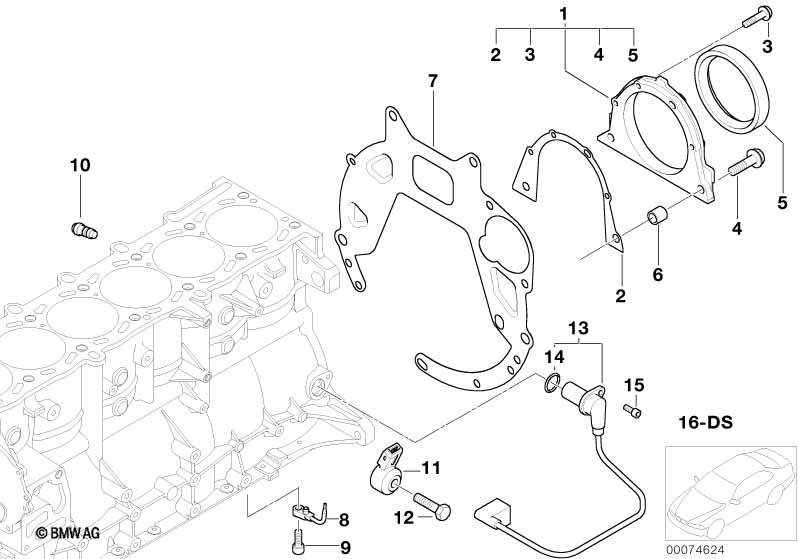

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set of covers | 1 | 11142247867 | $94.60 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket Steel | 1 | 11141432240 | $3.10 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X25-ZNNIV SI | 4 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X28-ZNNIV SI | 2 | 07119905530 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Shaft seal | 90X110X12 | 1 | 11142249533 | $58.96 | Shop at ECS Tuning | ||||
| 06 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 07 | Covering plate | 1 | 07/2007 | 11141734019 | $11.15 | ENDED | Shop at ECS Tuning | |||
| 07 | Covering plate | 1 | 11147838044 | $11.15 | Shop at ECS Tuning | |||||
| 08 | Oil Spraying Nozzle | 6 | 11427830770 | $19.90 | Shop at ECS Tuning | |||||
| 09 | ISA screw | M6X16-8.8-ZNNIV | 6 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 10 | Constant pressure valve | 1 BAR | 1 | 11111318185 | $41.25 | Shop at ECS Tuning | ||||
| 11 | Ping Sensor | 3 | 12147839167 | $25.18 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M8X30-8.8-ZNS3 | 3 | 07119902901 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Speed sensor | 1 | 12147830789 | $83.23 | Shop at ECS Tuning | |||||
| 14 | O-ring | 18X1,2 | 1 | 12141402705 | $1.07 | Shop at ECS Tuning | ||||
| 16 | Gasket Set Engine Block Asbesto Free | 1 | 11110302722 | $267.70 | ENDED | Shop at ECS Tuning |
