Timing case for BMW 3 Series E46 M3

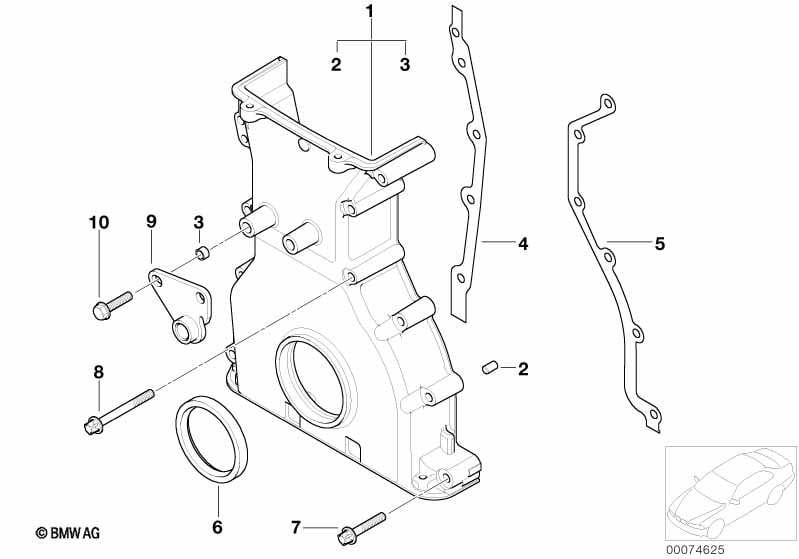

This Timing case technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing case cover | 1 | 11147831131 | $254.40 | +core | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | Dowel pin | 5 H8X14 | 2 | 07119942283 | $0.85 | Shop at ECS Tuning | ||||
| 03 | Dowel | D=8,5X9MM | 2 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 1 | 11141407692 | $11.27 | Shop at ECS Tuning | |||||
| 05 | Gasket Asbestos Free | 1 | 11141407693 | $11.27 | Shop at ECS Tuning | |||||
| 06 | Shaft seal | 48X65X10 | 1 | 11142249532 | $24.02 | Shop at ECS Tuning | ||||
| 07 | ASA-Bolt | M6X40-U1-8.8 | 5 | 07129905521 | $0.81 | Shop at ECS Tuning | ||||
| 08 | ASA-Bolt | M6X60-Z1 | 5 | 07129905522 | $0.87 | Shop at ECS Tuning | ||||
| 09 | Engagement dowel support | 2 | 11147838045 | $6.63 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
