Cylinder Head Vanos for BMW 3 Series E46 M3

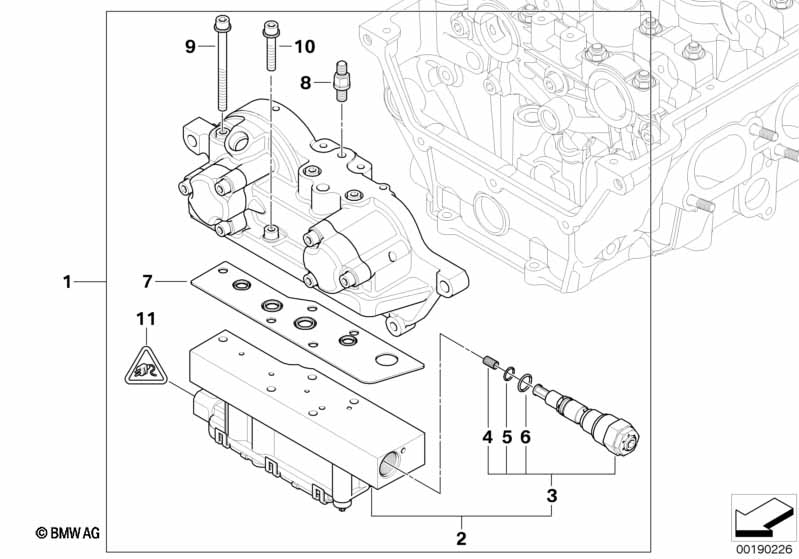

This Cylinder Head Vanos technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Adjuster unit | 1 | 11367838161 | $2554.60 | Shop at ECS Tuning | |||||
| 02 | Solenoid valve (SOLV) | 1 | 11367839180 | $763.78 | Shop at ECS Tuning | |||||
| 03 | Pressure limiting valve | 1 | 11367838080 | $165.00 | Shop at ECS Tuning | |||||
| 04 | Filter cartridge | 1 | 11361401971 | $9.20 | Shop at ECS Tuning | |||||
| 05 | O-ring | 10.82X1.78MM | 1 | 11311318659 | $3.46 | Shop at ECS Tuning | ||||
| 06 | O-ring | 14X3MM | 1 | 11361403325 | $4.25 | Shop at ECS Tuning | ||||
| 07 | Sealing plate | 1 | 11367831906 | $18.58 | Shop at ECS Tuning | |||||
| 08 | Stud bolt | M7X32 | 1 | 11367838083 | $4.00 | Shop at ECS Tuning | ||||
| 09 | Isa screw with washer | M6X70-U0-8.8 | 3 | 07129905554 | $0.65 | Shop at ECS Tuning | ||||
| 10 | Isa screw with washer | M6X30-U0-8.8 | 2 | 07129905537 | $1.09 | Shop at ECS Tuning | ||||
| 11 | Universal socket housing uncoded | 6 POL. | 1 | 61138383300 | $3.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 6 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 6 | 61130056961 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 M3 Cylinder Head Vanos?
- This technical diagram illustrates the Cylinder Head Vanos within the Engine group for the 3 Series E46 M3. It provides a detailed exploded view of the components, identifying key parts such as the Adjuster unit (Part #11367838161).
- Which models use the hardware listed in this Cylinder Head Vanos?
- The hardware and components featured in the Cylinder Head Vanos are specific to the 3 Series E46 M3. These technical specifications ensure that parts like the Adjuster unit (11367838161) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head Vanos assembly?
- Each item in the Cylinder Head Vanos corresponds to the numbered list below the illustration. For the 3 Series E46 M3, you can identify the Adjuster unit by locating its position on the schematic, which then links to the official BMW part number 11367838161 for the Engine section.
