Belt Drive-Vibration Damper for BMW 3 Series E46 M3

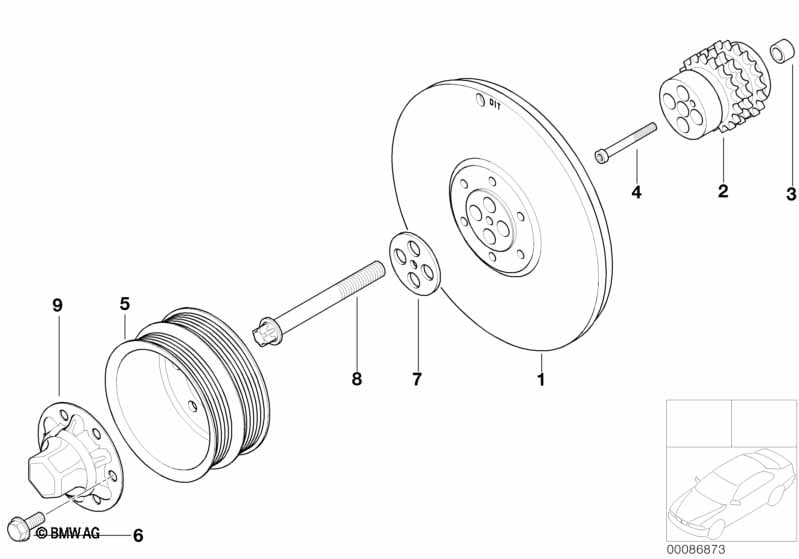

This Belt Drive-Vibration Damper technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vibration damper | 1 | 11237834425 | $660.37 | Shop at ECS Tuning | |||||
| 02 | Sprocket | 1 | 11211401036 | $184.22 | Shop at ECS Tuning | |||||
| 03 | Dowel | D=14,5MM | 1 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 04 | ISA screw | M6X50-8.8-ZNNIV | 1 | 07129905539 | $0.78 | Shop at ECS Tuning | ||||
| 05 | Pulley | 1 | 11217840380 | $60.61 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M8X16 | 6 | 01/2001 | 07119905528 | $0.62 | Shop at ECS Tuning | |||
| 06 | Hex bolt with washer | M8X18-U1-8.8 | 6 | 01/2001 | 07119905529 | $0.96 | Shop at ECS Tuning | |||
| 07 | Washer | 1 | 11231402609 | $4.82 | Shop at ECS Tuning | |||||
| 08 | Torx bolt | M12X1,5X110 | 4 | 11231402608 | $8.28 | Shop at ECS Tuning | ||||
| 09 | Cover | 1 | 01/2001 | 11237832456 | $9.87 | Shop at ECS Tuning |
