Crankcase-Ventilation/oil separator for BMW 3 Series E46 M3

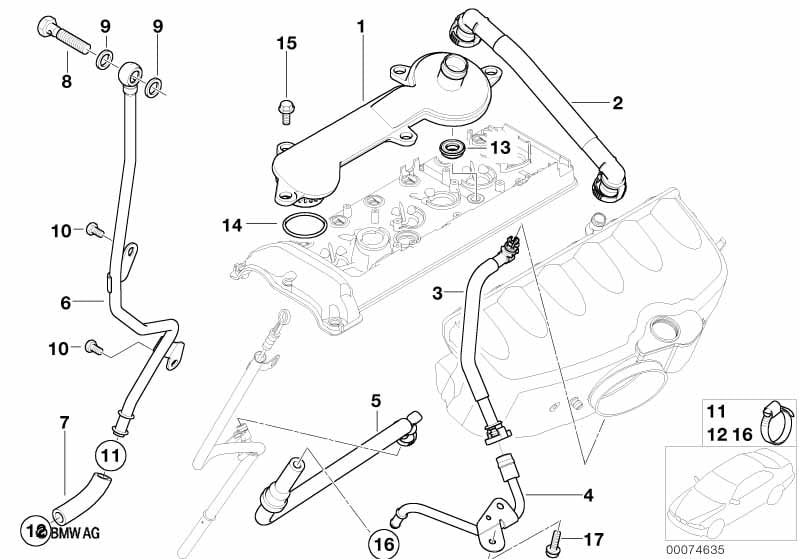

This Crankcase-Ventilation/oil separator technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sequential M transmission Drivelogic |
S793A=Yes |
|||||||||
| 01 | Oil separator | 1 | 09/2004 | 11157840446 | $33.39 | +core | Shop at ECS Tuning | |||
| 02 | Vent hose | 1 | 09/2004 | 11157831311 | $15.37 | Shop at ECS Tuning | ||||
| 03 | Vent hose | 1 | 09/2004 | 11617831336 | $22.38 | Shop at ECS Tuning | ||||
| 04 | Pipe | 1 | 09/2004 | 11617832298 | $27.02 | Shop at ECS Tuning | ||||
| 05 | Vent hose | 1 | 09/2004 | 11617839061 | $55.95 | +core | Shop at ECS Tuning | |||
| 06 | Return pipe | 1 | 02/2002 | 11157832781 | $99.25 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Connector | 1 | 02/2002 | 11127833008 | $48.80 | Shop at ECS Tuning | ||||
| 06 | Return pipe | 1 | 02/2002 | 09/2004 | 11157832781 | $99.25 | Shop at ECS Tuning | |||
| 07 | Return pipe | 1 | 02/2002 | 11157832781 | $99.25 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Connector | 1 | 02/2002 | 11127833008 | $48.80 | Shop at ECS Tuning | ||||
| 07 | Return pipe | 1 | 02/2002 | 09/2004 | 11157832781 | $99.25 | Shop at ECS Tuning | |||
| 08 | Hollow bolt | 1 | 09/2004 | 07119905427 | $2.25 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A12X15-CU | 2 | 09/2004 | 07119963129 | $0.11 | Shop at ECS Tuning | |||
| 10 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 02/2002 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 11 | Hose clamp | 15,0-17,5 | 1 | 02/2002 | 16121180241 | $1.76 | Shop at ECS Tuning | |||
| 12 | Hose clamp | L15-19 | 1 | 02/2002 | 07129952107 | $0.93 | Shop at ECS Tuning | |||
| 13 | Profile-gasket | 1 | 09/2004 | 11157832119 | $6.08 | Shop at ECS Tuning | ||||
| 14 | O-ring | 34X4 | 1 | 09/2004 | 11157830966 | $3.27 | Shop at ECS Tuning | |||
| 15 | Hexagon screw with flange | M6X20 | 5 | 09/2004 | 07119905546 | $6.73 | Shop at ECS Tuning | |||
| 16 | Hose clamp | 12,8-15,3 | 1 | 09/2004 | 16121180240 | $0.77 | Shop at ECS Tuning | |||
