Crankshaft-Pistons for BMW 3 Series E46 M3

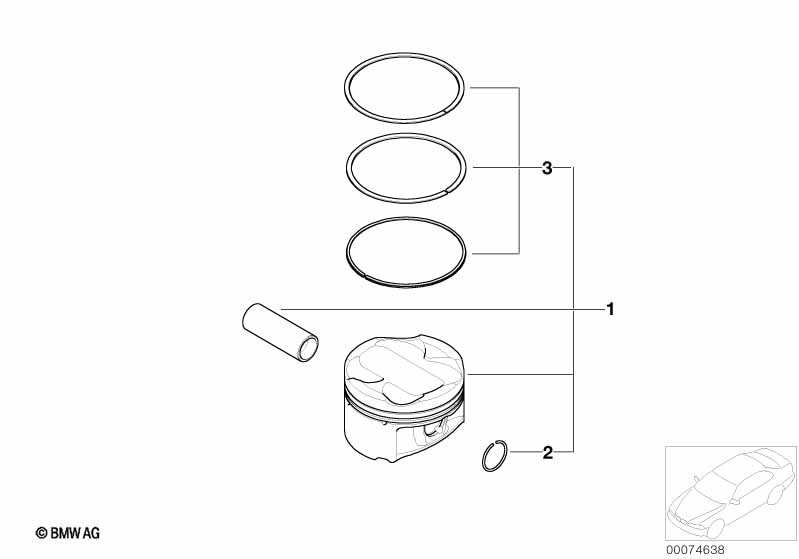

This Crankshaft-Pistons technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Piston kit | (0) | 1 | 11257834017 | $2267.59 | Shop at ECS Tuning | ||||
| 01 | Piston kit | (00) | 1 | 11257834018 | $2267.59 | ENDED | Shop at ECS Tuning | |||
| 01 | Piston kit | (+0,20) | 1 | 11257834019 | $2267.59 | Shop at ECS Tuning | ||||
| 02 | Snap ring | 12 | 11257831889 | $2.30 | Shop at ECS Tuning | |||||
| 03 | Repair kit piston rings | (0) | 6 | 11257834014 | $105.44 | Shop at ECS Tuning | ||||
| 03 | Repair kit piston rings | (00) | 6 | 11257834015 | $153.71 | Shop at ECS Tuning | ||||
| 03 | Repair kit piston rings | (+0,20) | 6 | 11257834016 | $153.71 | Shop at ECS Tuning |
