Waterpump - Thermostat for BMW 3 Series E46 M3 (2002)

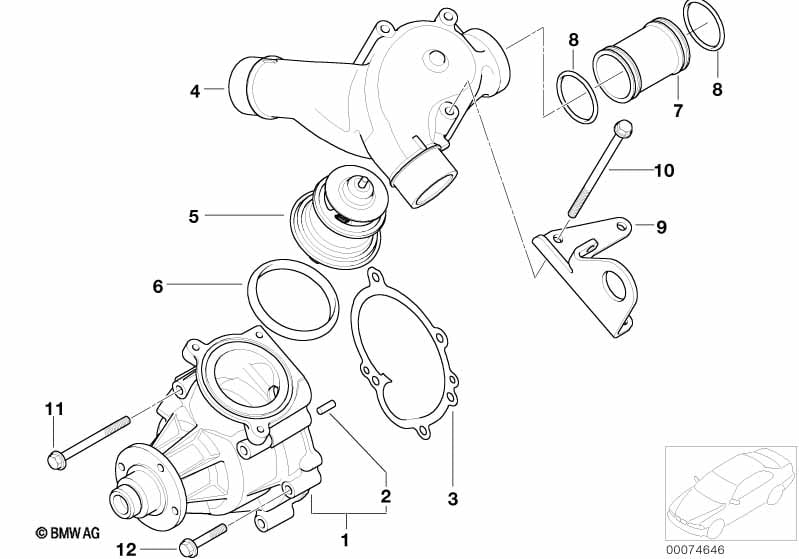

This Waterpump - Thermostat technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant pump, mechanical | 1 | 11517838118 | Shop at ECS Tuning | ||||||
| 02 | Dowel pin | 5 H8X14 | 2 | 07119942283 | $0.85 | Shop at ECS Tuning | ||||
| 03 | Gasket Steel | 1 | 11517831099 | $5.63 | Shop at ECS Tuning | |||||
| 04 | Thermostat housing | 1 | 07/2007 | 11537831103 | $229.06 | +core | Shop at ECS Tuning | |||
| 04 | Thermostat housing | 1 | 11537838120 | Shop at ECS Tuning | ||||||
| 05 | Thermostat | 80GRAD | 1 | 11531318274 | $79.07 | Shop at ECS Tuning | ||||
| 06 | O-ring | 64,77X2,62MM | 1 | 11531318402 | $4.27 | Shop at ECS Tuning | ||||
| 07 | Pipe | 1 | 11537830710 | $17.92 | Shop at ECS Tuning | |||||
| 08 | O-ring | 38,0X3,0MM | 2 | 11537830709 | $1.75 | Shop at ECS Tuning | ||||
| 09 | Holder | 1 | 11537838119 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt with washer | M6X85-U1-8.8 | 3 | 07119905548 | $3.42 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X70 | 2 | 07119905395 | $0.71 | Shop at ECS Tuning | ||||
| 12 | Hex bolt with washer | M6X35-U1-8.8 | 3 | 07119904589 | $0.47 | Shop at ECS Tuning |
