Engine block for BMW 6 Series E24 635CSi (1989)

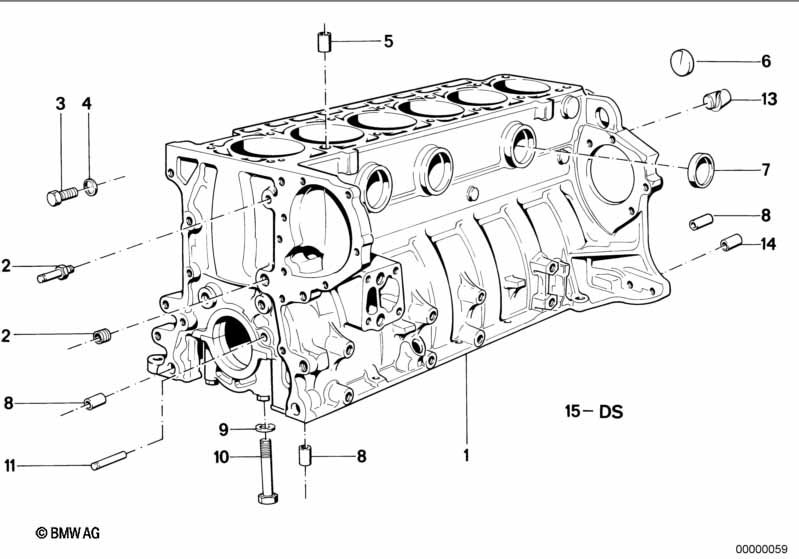

This Engine block technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine block without pistons | M30B35 92MM | 1 | 06/1987 | 11111293204 | Shop at ECS Tuning | ||||
| 01 | Engine block with piston | 1 | 06/1987 | 11111720650 | $2113.18 | ENDED | Shop at ECS Tuning | |||
| 02 | Screw plug | M14X1,5 | 2 | 06/1987 | 07119905896 | $3.20 | ENDED | Shop at ECS Tuning | ||
| 03 | Screw plug | AM14X1,5 | 1 | 06/1987 | 07119909704 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A14X18-AL | 1 | 06/1987 | 07119963200 | $0.38 | Shop at ECS Tuning | |||
| 05 | Dowel | D=14,5MM | 2 | 06/1987 | 11111743118 | $1.65 | Shop at ECS Tuning | |||
| 06 | Cover lid | D=36MM | 2 | 06/1987 | 11111717939 | $2.20 | Shop at ECS Tuning | |||
| 07 | Cover lid | D=45MM | 6 | 06/1987 | 11111714712 | $3.32 | Shop at ECS Tuning | |||
| 08 | Dowel | D=10,5MM | 6 | 06/1987 | 11121726238 | $1.62 | Shop at ECS Tuning | |||
| 09 | Wave washer | B10-ZNS3 | X | 06/1987 | 07119904463 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M10X80 | X | 06/1987 | 07119912680 | $1.89 | ENDED | Shop at ECS Tuning | ||
| 11 | Bolt | 1 | 06/1987 | 11111706500 | $4.12 | Shop at ECS Tuning | ||||
| 12 | Bolt | 1 | 06/1987 | 11311744351 | $4.20 | Shop at ECS Tuning | ||||
| 13 | Blind plug | 1 | 06/1987 | 11111716913 | $4.87 | Shop at ECS Tuning | ||||
| 14 | Dowel | D=14,5/12,6MM | 2 | 06/1987 | 23111606156 | $2.18 | Shop at ECS Tuning | |||
| 15 | Gasket Set Engine Block Asbesto Free | 1 | 06/1987 | 11119059234 | $101.69 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
