Timimg gear - rocker arm/valves for BMW 5 Series E12 525 (1976)

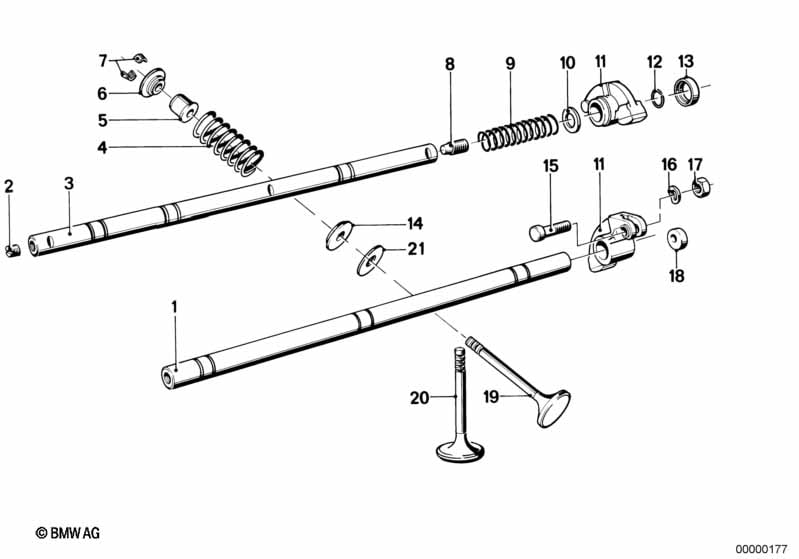

This Timimg gear - rocker arm/valves technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rocker arm shaft intake rear | 1 | 11331274929 | $81.32 | Shop at ECS Tuning | |||||
| 01 | Rocker arm shaft intake front | 1 | 11331274963 | $81.32 | Shop at ECS Tuning | |||||
| 02 | Plug | 4 | 11331266400 | $5.48 | Shop at ECS Tuning | |||||
| 02 | Screw plug | M12X1 | 4 | 11331274923 | $1.62 | Shop at ECS Tuning | ||||
| 03 | Rocker arm shaft exhaust rear | 1 | 11331274947 | $81.32 | +core | Shop at ECS Tuning | ||||
| 03 | Rocker arm shaft exhaust front | 1 | 11331274959 | $81.32 | Shop at ECS Tuning | |||||
| 04 | Valve spring | L=44,8/D=32,1MM | X | 11341276504 | Shop at ECS Tuning | |||||
| 05 | Valve seal ring | D=13,9MM | X | 08/1978 | 11341261269 | Shop at ECS Tuning | ||||
| 06 | Spring pocket | X | 11341252899 | Shop at ECS Tuning | ||||||
| 07 | Valve collet | X | 11341710975 | $1.08 | Shop at ECS Tuning | |||||
| 08 | Plug | 4 | 11331266400 | $5.48 | Shop at ECS Tuning | |||||
| 08 | Screw plug | M12X1 | 4 | 11331274923 | $1.62 | Shop at ECS Tuning | ||||
| 09 | Compression spring | X | 11330634125 | $1.07 | Shop at ECS Tuning | |||||
| 10 | Washer | X | 11330634140 | $1.85 | Shop at ECS Tuning | |||||
| 11 | Rocker arm | X | 11331271833 | $55.08 | Shop at ECS Tuning | |||||
| 12 | Spring washer | X | 11330634135 | $0.30 | Shop at ECS Tuning | |||||
| 13 | Interm.ring | X | 11331744353 | Shop at ECS Tuning | ||||||
| 14 | Spring pocket | X | 11340626116 | $3.45 | ENDED | Shop at ECS Tuning | ||||
| 15 | Screw | X | 11331744355 | $2.03 | Shop at ECS Tuning | |||||
| 16 | Washer | X | 11331258327 | $0.10 | Shop at ECS Tuning | |||||
| 17 | Hex nut | M6 | X | 11331744333 | $0.28 | Shop at ECS Tuning | ||||
| 18 | Eccentric | X | 11331744354 | $4.92 | Shop at ECS Tuning | |||||
| 19 | Exhaust valve | 38,0/8,00MM | 6 | 11341250129 | $98.18 | Shop at ECS Tuning | ||||
| 20 | Intake valve | 46,0/8,00MM | 6 | 11341257592 | $45.08 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
