Lubrication system/Oil pump for BMW 7 Series E23 728 (1979)

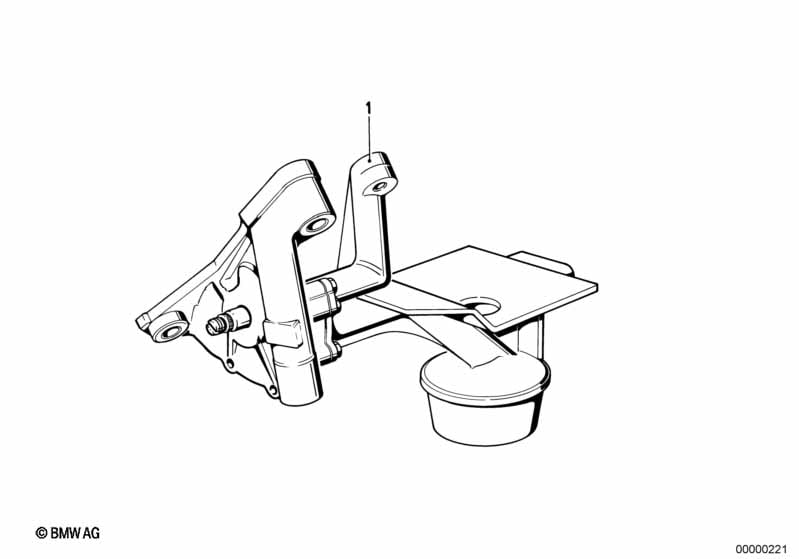

This Lubrication system/Oil pump technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump | 1 | 09/1982 | 11411286468 | $490.01 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Sprocket | 1 | 09/1982 | 11411273689 | $30.94 | Shop at ECS Tuning | ||||
| -- | Self-locking hex nut | M10X1 | 1 | 09/1982 | 07129922436 | $0.54 | Shop at ECS Tuning | |||
| -- | Shim | 12X18X1,7 | 1 | 09/1982 | 07119932634 | $0.28 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728 Lubrication system/Oil pump?
- This technical diagram illustrates the Lubrication system/Oil pump within the Engine group for the 7 Series E23 728 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Oil pump (Part #11411286468).
- Which models use the hardware listed in this Lubrication system/Oil pump?
- The hardware and components featured in the Lubrication system/Oil pump are specific to the 7 Series E23 728 produced during 1979. These technical specifications ensure that parts like the Oil pump (11411286468) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubrication system/Oil pump assembly?
- Each item in the Lubrication system/Oil pump corresponds to the numbered list below the illustration. For the 7 Series E23 728, you can identify the Oil pump by locating its position on the schematic, which then links to the official BMW part number 11411286468 for the Engine section.
