Engine block for BMW MINI R53 Cooper S

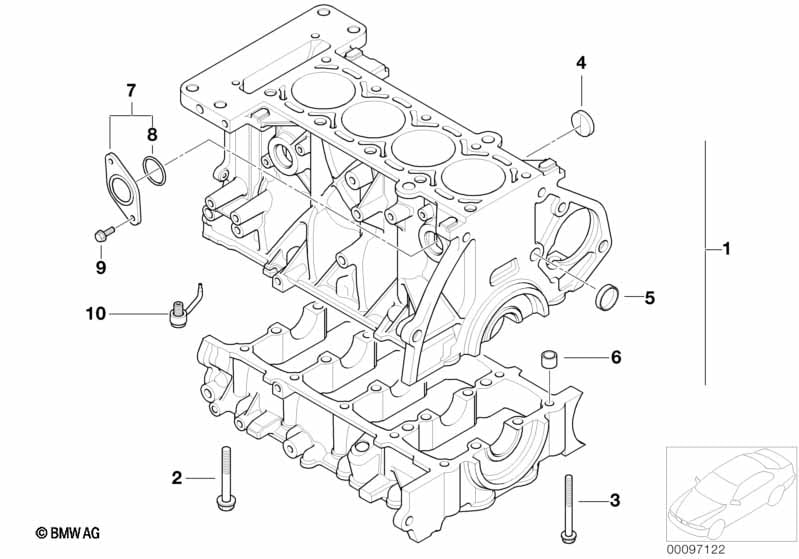

This Engine block technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine block with crankgear | 1 | 07/2007 | 11117581400 | $3772.03 | ENDED | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Primer Loctite 171000 | 4ML | 1 | 07/2007 | 83197515683 | $11.90 | Shop at ECS Tuning | |||
| 01 | Engine block with crankgear | 1 | 07/2007 | 11117520126 | $3772.03 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt with washer | M10X75 | 10 | 07131485178 | $3.16 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X85 | 7 | 07131485180 | $3.05 | Shop at ECS Tuning | ||||
| 04 | Cover lid | D=35MM | 2 | 07131485174 | $2.04 | Shop at ECS Tuning | ||||
| 05 | Cover lid | D=16MM | 2 | 11111485175 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Dowel | 3 | 07101487235 | $0.38 | Shop at ECS Tuning | |||||
| 07 | Cover plate | 1 | 07/2008 | 11112450355 | ENDED | Shop at ECS Tuning | ||||
| 07 | RP REMAN locking plate | 1 | 07/2008 | 11112463750 | Shop at ECS Tuning | |||||
| 08 | seal, cap | 1 | 11111487596 | $3.81 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M6X16 | 2 | 07137829909 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Oil Spraying Nozzle | 4 | 11117531576 | $15.22 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
