Engine Block Mounting Parts for BMW MINI R53 Cooper S

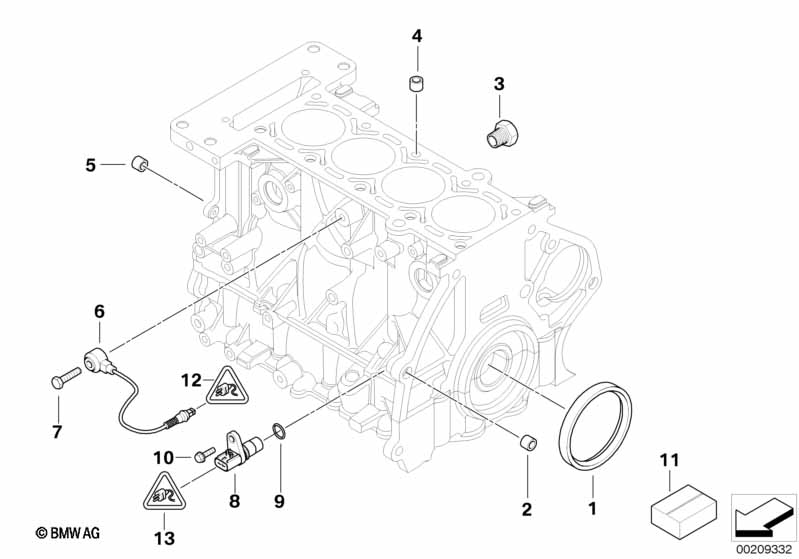

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shaft seal | 1 | 11111492244 | $31.38 | Shop at ECS Tuning | |||||
| 02 | Dowel | 2 | 07101485190 | $1.04 | Shop at ECS Tuning | |||||
| 03 | Screw plug | 1 | 07137829945 | $0.87 | Shop at ECS Tuning | |||||
| 04 | Dowel | 3 | 07107513004 | $1.28 | Shop at ECS Tuning | |||||
| 05 | Dowel | 2 | 07107513004 | $1.28 | Shop at ECS Tuning | |||||
| 06 | Ping Sensor | 1 | 12141487246 | $25.18 | Shop at ECS Tuning | |||||
| 07 | Collar screw | M8X1.25X33 | 1 | 07131500914 | $0.89 | Shop at ECS Tuning | ||||
| 08 | Pulse generator, crankshaft | 1 | 12141485844 | $116.05 | Shop at ECS Tuning | |||||
| 09 | O-ring | 1 | 12147514983 | $1.93 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X20MM | 1 | 07131487232 | $0.44 | Shop at ECS Tuning | ||||
| 11 | Gasket Set Engine Block Asbesto Free | 1 | 11110147562 | $134.07 | ENDED | Shop at ECS Tuning | ||||
| 12 | Socket housing | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| 13 | Socket housing 3 pins black | 1 | 12527511371 | $6.70 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bushing contact | 1,2-2,0 MM² | 1 | 12527511409 | $0.50 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
