Cylinder Head for BMW MINI R53 Cooper S

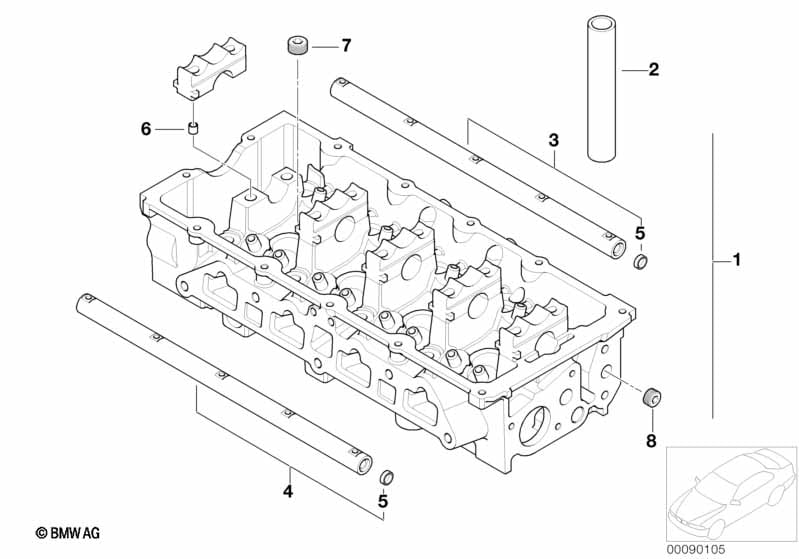

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | 1 | 11127508536 | $1801.37 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Stud bolt | M8X37-10.9-ZNS3 | 5 | 07137521508 | $1.91 | Shop at ECS Tuning | ||||
| For vehicles with John Cooper Works Kit |
S3ALA=Yes |
|||||||||
| 01 | Cylinder Head | 1 | 11127556987 | $1801.37 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Stud bolt | M8X37-10.9-ZNS3 | 1 | 07137521508 | $1.91 | Shop at ECS Tuning | ||||
| 02 | Spark plug pipe | 4 | 11121487186 | $7.84 | Shop at ECS Tuning | |||||
| 03 | RP rocker-arm shaft exhaust | 1 | 11331487601 | $35.37 | Shop at ECS Tuning | |||||
| 03 | RP REMAN rocker-arm shaft exhaust | 1 | 11332465006 | Shop at ECS Tuning | ||||||
| 04 | RP rocker-arm shaft intake | 1 | 11331485832 | $35.37 | Shop at ECS Tuning | |||||
| 04 | RP REMAN rocker-arm shaft intake | 1 | 11332465005 | Shop at ECS Tuning | ||||||
| 05 | Cover lid | D=11,4MM | 4 | 07131486691 | $12.38 | Shop at ECS Tuning | ||||
| 06 | Dowel | 10 | 07101486697 | $2.51 | Shop at ECS Tuning | |||||
| 07 | Blind plug | 2 | 07131486690 | $0.75 | Shop at ECS Tuning | |||||
| 08 | Blind plug | 1 | 11121501167 | $3.53 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R53 Cooper S Cylinder Head?
- This technical diagram illustrates the Cylinder Head within the Engine group for the MINI R53 Cooper S. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder Head (Part #11127508536).
- Which models use the hardware listed in this Cylinder Head?
- The hardware and components featured in the Cylinder Head are specific to the MINI R53 Cooper S. These technical specifications ensure that parts like the Cylinder Head (11127508536) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head assembly?
- Each item in the Cylinder Head corresponds to the numbered list below the illustration. For the MINI R53 Cooper S, you can identify the Cylinder Head by locating its position on the schematic, which then links to the official BMW part number 11127508536 for the Engine section.
