Cylinder Head Attached Parts for BMW MINI R53 Cooper S

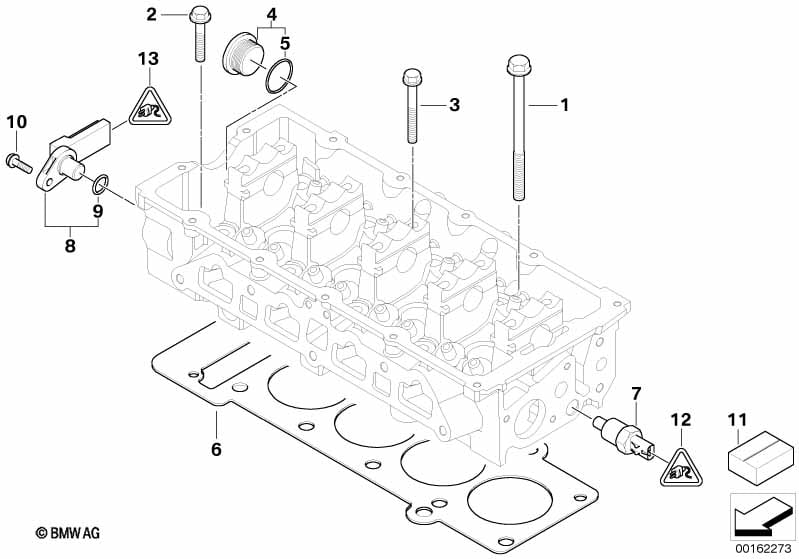

This Cylinder Head Attached Parts technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head bolt | M10X150MM | 10 | 07131487226 | $3.82 | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M8X45 | 2 | 11317829911 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Hexagon screw with flange | M8X65MM | 10 | 07131500901 | $1.80 | Shop at ECS Tuning | ||||
| 04 | Screw Plug With Gasket Ring | 2 | 11311487189 | $7.20 | Shop at ECS Tuning | |||||
| 05 | O-ring | 2 | 11317514982 | $0.88 | Shop at ECS Tuning | |||||
| 06 | Cylinder Head Gasket Asbestos-Free | 0,65MM | 1 | 11127508543 | $66.77 | Shop at ECS Tuning | ||||
| 06 | Cylinder Head Gasket Asbestos-Free | 0,95MM(+0,3) | 1 | 11127508544 | $74.19 | Shop at ECS Tuning | ||||
| 07 | Temperature sensor, water | 1 | 13621486698 | $12.42 | Shop at ECS Tuning | |||||
| 08 | Camshaft position sensor | 1 | 12141485845 | $116.05 | Shop at ECS Tuning | |||||
| 09 | O-ring | 1 | 07119909399 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt with washer | M6X20MM | 1 | 07131487232 | $0.44 | Shop at ECS Tuning | ||||
| Gasket set without cyl.head gasket | ||||||||||
| 11 | Gasket Set Cylinder Head Asbestos Free | 1 | 11120147561 | $264.13 | Shop at ECS Tuning | |||||
| 12 | Socket housing 2 pins | 1 | 12527511368 | $2.53 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Grommet | 1 | 12526909252 | $3.37 | Shop at ECS Tuning | |||||
| -- | Bushing contact | 0,5-1,0MM² | 1 | 12527511406 | $0.50 | Shop at ECS Tuning | ||||
| 13 | Socket housing 3 pins black | 1 | 12527511371 | $6.70 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bushing contact | 0,5-1,0MM² | 1 | 12527511408 | $0.50 | Shop at ECS Tuning | ||||
| -- | Bushing contact | 1,2-2,0 MM² | 1 | 12527511409 | $0.50 | Shop at ECS Tuning | ||||
