Cylinder head cover for BMW MINI R53 Cooper S

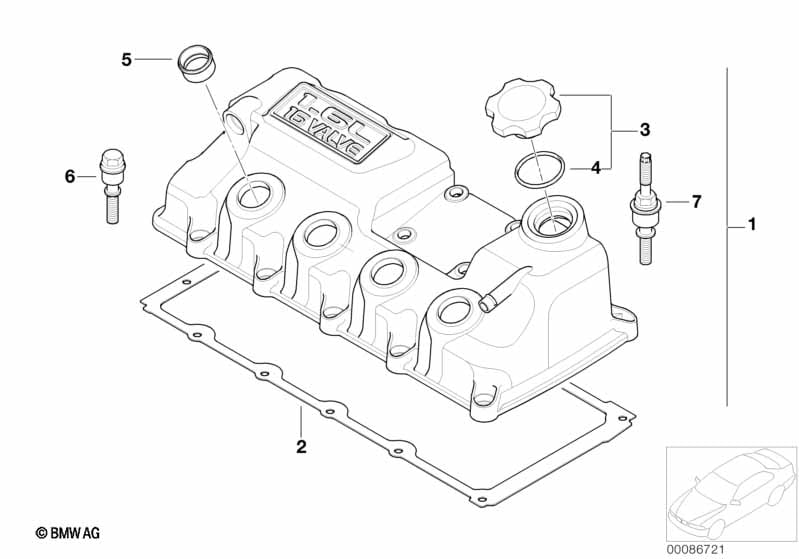

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 07/2004 | 11128658461 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Cylinder head cover | 1 | 07/2004 | 11122463733 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Label "Engine Identification" | 1 | 07/2004 | 71220933608 | $5.58 | Shop at ECS Tuning | ||||
| -- | Crank case vent valve | 1 | 07/2004 | 11127577568 | $20.83 | Shop at ECS Tuning | ||||
| 01 | Cylinder head cover | 1 | 07/2004 | 07/2008 | 11128658461 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Label "Engine Identification" | 1 | 07/2004 | 07/2008 | 71220933608 | $5.58 | Shop at ECS Tuning | |||
| 02 | Profile-gasket | 1 | 11121485838 | $17.75 | Shop at ECS Tuning | |||||
| 03 | RP oil filler cap | 1 | 11121486686 | $17.16 | Shop at ECS Tuning | |||||
| 03 | RP REMAN oil filler cap | 1 | 11122465018 | Shop at ECS Tuning | ||||||
| 04 | O-ring | 1 | 11127514981 | $4.71 | Shop at ECS Tuning | |||||
| 05 | Seal | 4 | 11127513066 | $5.90 | Shop at ECS Tuning | |||||
| 06 | Collar screw | 8 | 11121487179 | $2.25 | Shop at ECS Tuning | |||||
| 07 | Collar screw | 4 | 11121487178 | $3.68 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R53 Cooper S Cylinder head cover?
- This technical diagram illustrates the Cylinder head cover within the Engine group for the MINI R53 Cooper S. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder head cover (Part #11128658461).
- Which models use the hardware listed in this Cylinder head cover?
- The hardware and components featured in the Cylinder head cover are specific to the MINI R53 Cooper S. These technical specifications ensure that parts like the Cylinder head cover (11128658461) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head cover assembly?
- Each item in the Cylinder head cover corresponds to the numbered list below the illustration. For the MINI R53 Cooper S, you can identify the Cylinder head cover by locating its position on the schematic, which then links to the official BMW part number 11128658461 for the Engine section.
