Crankcase-Ventilation/oil separator for BMW MINI R53 Cooper S

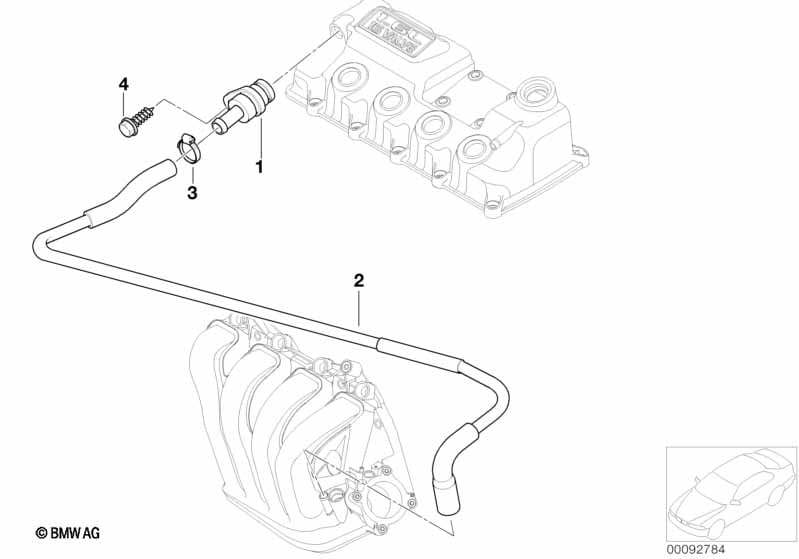

This Crankcase-Ventilation/oil separator technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crank case vent valve | 1 | 07/2004 | 11127829990 | $20.83 | +core | Shop at ECS Tuning | |||
| 01 | Crank case vent valve | 1 | 07/2004 | 11127577568 | $20.83 | Shop at ECS Tuning | ||||
| 02 | Vent hose | 1 | 11151524087 | $15.37 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | D=20MM | 1 | 13717531833 | $2.73 | Shop at ECS Tuning | ||||
| 04 | Screw with flange | M5,74X20MM | 1 | 07/2004 | 07137829961 | $1.64 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R53 Cooper S Crankcase-Ventilation/oil separator?
- This technical diagram illustrates the Crankcase-Ventilation/oil separator within the Engine group for the MINI R53 Cooper S. It provides a detailed exploded view of the components, identifying key parts such as the Crank case vent valve (Part #11127829990).
- Which models use the hardware listed in this Crankcase-Ventilation/oil separator?
- The hardware and components featured in the Crankcase-Ventilation/oil separator are specific to the MINI R53 Cooper S. These technical specifications ensure that parts like the Crank case vent valve (11127829990) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankcase-Ventilation/oil separator assembly?
- Each item in the Crankcase-Ventilation/oil separator corresponds to the numbered list below the illustration. For the MINI R53 Cooper S, you can identify the Crank case vent valve by locating its position on the schematic, which then links to the official BMW part number 11127829990 for the Engine section.
