Belt Drive-Vibration Damper for BMW MINI R53 Cooper S

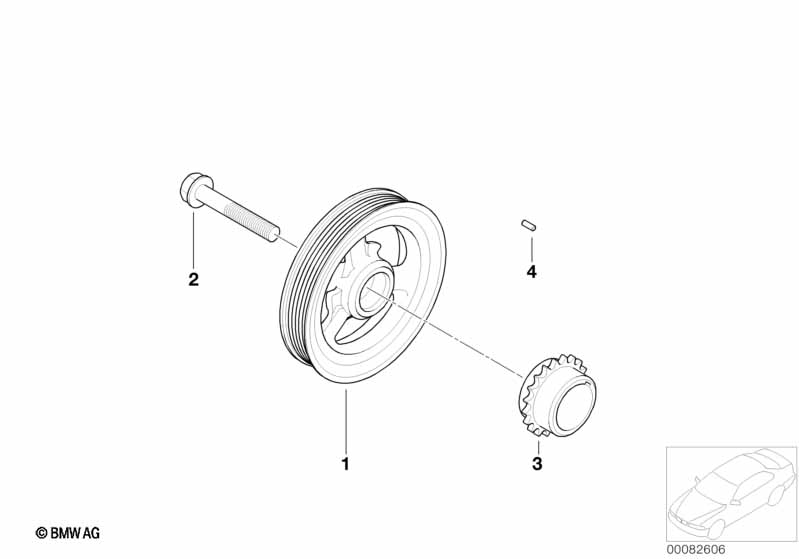

This Belt Drive-Vibration Damper technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vibration damper | 1 | 11237525135 | $349.63 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M12X1,75X75 | 1 | 11237829918 | $2.87 | Shop at ECS Tuning | ||||
| 03 | RP sprocket | 1 | 11211485402 | $36.43 | Shop at ECS Tuning | |||||
| 03 | RP REMAN sprocket | 1 | 11212465002 | Shop at ECS Tuning | ||||||
| 04 | Dowel pin | 4X10 | 1 | 07119942050 | $0.60 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R53 Cooper S Belt Drive-Vibration Damper?
- This technical diagram illustrates the Belt Drive-Vibration Damper within the Engine group for the MINI R53 Cooper S. It provides a detailed exploded view of the components, identifying key parts such as the Vibration damper (Part #11237525135).
- Which models use the hardware listed in this Belt Drive-Vibration Damper?
- The hardware and components featured in the Belt Drive-Vibration Damper are specific to the MINI R53 Cooper S. These technical specifications ensure that parts like the Vibration damper (11237525135) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Belt Drive-Vibration Damper assembly?
- Each item in the Belt Drive-Vibration Damper corresponds to the numbered list below the illustration. For the MINI R53 Cooper S, you can identify the Vibration damper by locating its position on the schematic, which then links to the official BMW part number 11237525135 for the Engine section.
