Cranksh.drive crankshaft/ bearing shells for BMW MINI R53 Cooper S

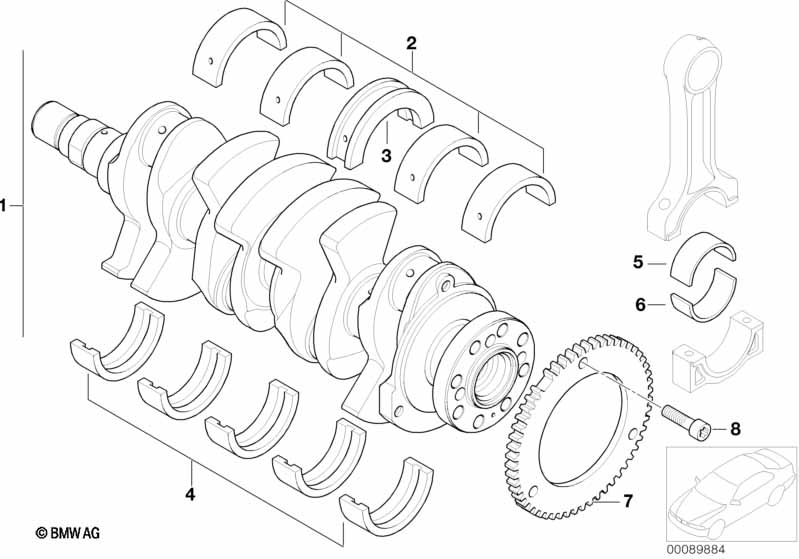

This Cranksh.drive crankshaft/ bearing shells technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | AT-crankshaft with bearing shells | 1 | 11217546618 | $816.90 | ENDED | Shop at ECS Tuning | ||||
| 01 | RP REMAN crankshaft w.o bearing shells | (+0,25) | 1 | 11212407629 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bearing shell | 43,75MM(+0,25) | 8 | 11247829983 | $41.21 | Shop at ECS Tuning | ||||
| -- | Guide bearing shell | 47,75MM(+0,25) | 1 | 11217829949 | $49.34 | Shop at ECS Tuning | ||||
| -- | Bearing shell | 47,75MM(+0,25) | 5 | 11217829975 | $41.21 | Shop at ECS Tuning | ||||
| -- | Bearing shell | 47,75MM(+0,25) | 4 | 11217829979 | $41.21 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | AT-crankshaft with bearing shells | 1 | 11217546618 | $816.90 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bearing shell | 48,00MM(0) | 4 | 11211492118 | $32.98 | Shop at ECS Tuning | ||||
| 02 | Bearing shell | 47,75MM(+0,25) | 4 | 11217829979 | $41.21 | Shop at ECS Tuning | ||||
| 03 | RP guide bearing shell | 48,00MM(0) | 1 | 11217829946 | $22.53 | Shop at ECS Tuning | ||||
| 03 | RP REMAN guide bearing shell | 48,00MM(0) | 1 | 11212465015 | ENDED | Shop at ECS Tuning | ||||
| 03 | Guide bearing shell | 47,75MM(+0,25) | 1 | 11217829949 | $49.34 | Shop at ECS Tuning | ||||
| 04 | Bearing shell | 48,00MM(0) | 5 | 11211492117 | $32.98 | Shop at ECS Tuning | ||||
| 04 | Bearing shell | 47,75MM(+0,25) | 5 | 11217829975 | $41.21 | Shop at ECS Tuning | ||||
| 05 | Bearing shell | 44,00MM(0) | 4 | 11241492122 | $32.98 | Shop at ECS Tuning | ||||
| 05 | Bearing shell | 43,75MM(+0,25) | 4 | 11247829983 | $41.21 | Shop at ECS Tuning | ||||
| 06 | Bearing shell | 44,00MM(0) | 4 | 11241492122 | $32.98 | Shop at ECS Tuning | ||||
| 06 | Bearing shell | 43,75MM(+0,25) | 4 | 11247829983 | $41.21 | Shop at ECS Tuning | ||||
| 07 | Impulse sending wheel | 1 | 11217513056 | $37.12 | +core | Shop at ECS Tuning | ||||
| 08 | Torx bolt | 3 | 07107510758 | $1.25 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
