Valve Timing Gear - Cam Shaft for BMW MINI R53 Cooper S

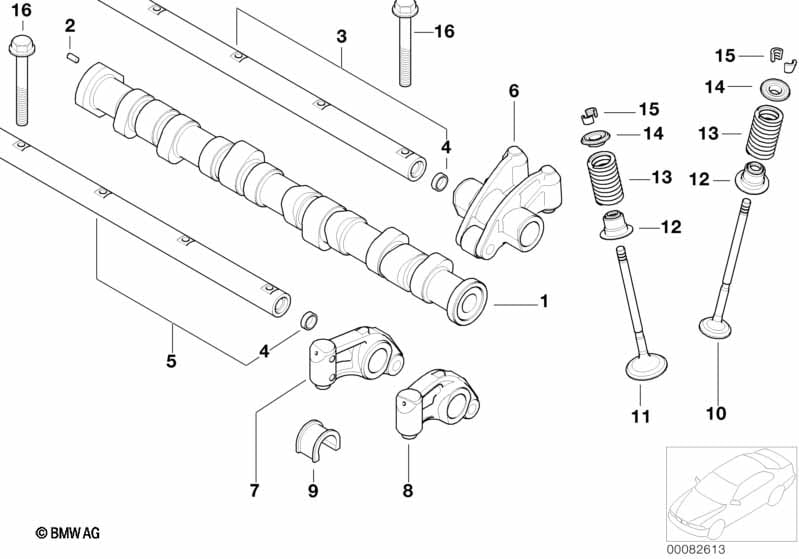

This Valve Timing Gear - Cam Shaft technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Camshaft Camshaft | 1 | 11311485827 | $425.14 | Shop at ECS Tuning | |||||
| 02 | Dowel pin | M4X8 | 1 | 07137829921 | $2.21 | Shop at ECS Tuning | ||||
| 03 | RP rocker-arm shaft exhaust | 1 | 11331487601 | $35.37 | Shop at ECS Tuning | |||||
| 03 | RP REMAN rocker-arm shaft exhaust | 1 | 11332465006 | Shop at ECS Tuning | ||||||
| 04 | Cover lid | D=11,4MM | 4 | 07131486691 | $12.38 | Shop at ECS Tuning | ||||
| 05 | RP rocker-arm shaft intake | 1 | 11331485832 | $35.37 | Shop at ECS Tuning | |||||
| 05 | RP REMAN rocker-arm shaft intake | 1 | 11332465005 | Shop at ECS Tuning | ||||||
| 06 | Rocker arm, outlet | 4 | 11337522124 | $66.08 | Shop at ECS Tuning | |||||
| 07 | Rocker arm, inlet, right | 4 | 11337514977 | $44.04 | Shop at ECS Tuning | |||||
| 08 | Rocker arm, inlet, left | 4 | 11337514978 | $44.04 | Shop at ECS Tuning | |||||
| 09 | Spacer plate | 4 | 11331492130 | $1.38 | Shop at ECS Tuning | |||||
| 10 | RP exhaust valve | 23,0/5,94MM | 8 | 11347513024 | $33.04 | Shop at ECS Tuning | ||||
| 10 | RP REMAN exhaust valve | 23,0/5,94MM | 8 | 11342465010 | Shop at ECS Tuning | |||||
| 11 | Intake valve | 30,0/5,94MM | 8 | 11347513019 | $26.92 | +core | Shop at ECS Tuning | |||
| 12 | Repair kit valve seal ring | 1 | 11340029571 | $82.00 | Shop at ECS Tuning | |||||
| 13 | Valve spring | 16 | 11341485590 | $7.88 | Shop at ECS Tuning | |||||
| 14 | Upper spring plate | 16 | 11121499316 | $3.68 | Shop at ECS Tuning | |||||
| 15 | Valve collet | 32 | 11347513015 | $1.08 | Shop at ECS Tuning | |||||
| 16 | Hexagon screw with flange | M8X65MM | 10 | 07131500901 | $1.80 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
