Lubrication system/Oil pump with drive for BMW MINI R53 Cooper S

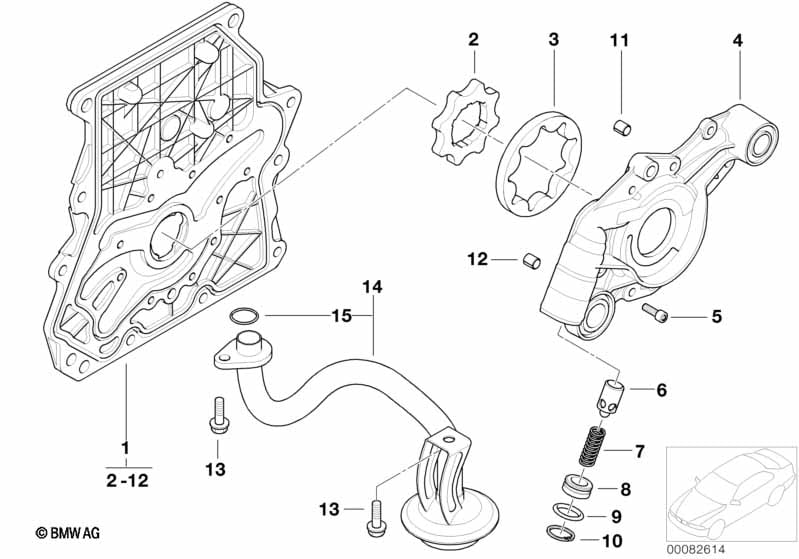

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the MINI R53 Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP transmission cover with oil pump | 1 | 07/2008 | 11147573765 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | RP REMAN transmission cover w.oil pump | 1 | 07/2008 | 11142463752 | Shop at ECS Tuning | |||||
| 01 | End cover with oil pump | 1 | 07/2008 | 11145A84E49 | Shop at ECS Tuning | |||||
| 02 | Rotor inner | 1 | 11411487212 | $14.92 | +core | Shop at ECS Tuning | ||||
| 03 | Rotor,outer | 1 | 11411487213 | $14.92 | +core | Shop at ECS Tuning | ||||
| 04 | Oil pump cover | 1 | 11418604196 | Shop at ECS Tuning | ||||||
| 05 | Isa screw with washer | M5X16-U1-8.8 | 10 | 07129905535 | Shop at ECS Tuning | |||||
| 06 | Control valve | 1 | 11411485165 | $13.22 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Coil spring | 1 | 11411485166 | $8.48 | ENDED | Shop at ECS Tuning | ||||
| 08 | Spacer bush | 1 | 11417513048 | $6.85 | ENDED | Shop at ECS Tuning | ||||
| 09 | O-ring | 17X1,8 | 1 | 07131485193 | $4.00 | ENDED | Shop at ECS Tuning | |||
| 10 | Lock Ring | 1 | 07131500905 | $4.24 | ENDED | Shop at ECS Tuning | ||||
| 11 | Guide bush | 1 | 07101485188 | $3.75 | Shop at ECS Tuning | |||||
| 12 | Guide bush | 1 | 07101485187 | $3.75 | Shop at ECS Tuning | |||||
| 13 | Collar screw | M6X18MM | 2 | 07131487231 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Intake tube | 1 | 11411488579 | $16.89 | Shop at ECS Tuning | |||||
| 15 | O-ring | 20,29X2,62 MNUT | 1 | 11411487214 | $1.37 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
