Oil pan/oil level indicator for BMW 3 Series E46 318i (2003)

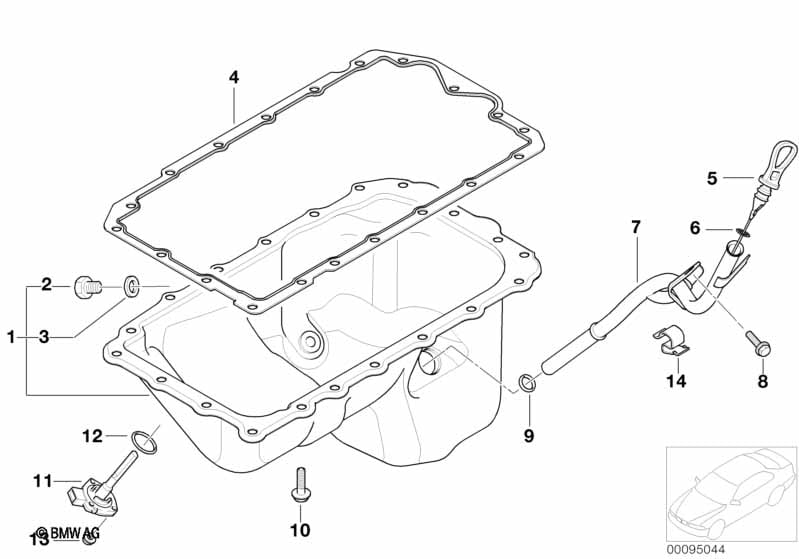

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11137568565 | Shop at ECS Tuning | ||||||
| 02 | Screw plug | M12X1,5 | 1 | 11137568309 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 04 | Profile-gasket | 1 | 11137511224 | $35.58 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Self-locking hex bolt | M8X28,5 | 20 | 11137551825 | Shop at ECS Tuning | |||||
| 05 | Dipstick | 1 | 11437505490 | $15.30 | Shop at ECS Tuning | |||||
| 06 | O-ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
| 07 | Guide tube | 1 | 11437505011 | $40.73 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M8X16 | 2 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 09 | O-ring | 14,5X3,0 | 1 | 11437529257 | $1.19 | Shop at ECS Tuning | ||||
| 10 | Self-locking hex bolt | M8X28,5 | 20 | 11137551825 | Shop at ECS Tuning | |||||
| 11 | Oil levelling sensor | 1 | 12617501786 | $163.50 | +core | Shop at ECS Tuning | ||||
| 12 | Gasket ring | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 13 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 14 | Cable clamp | 1 | 11787549563 | $1.04 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
