Oil pump and compensating shaft drive for BMW 3 Series E90 320i (2007)

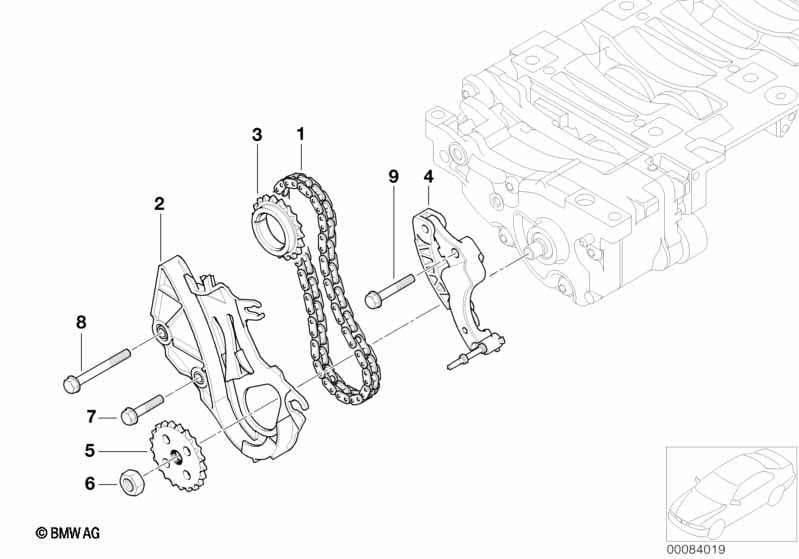

This Oil pump and compensating shaft drive technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Chain | 1 | 11277500502 | $30.08 | Shop at ECS Tuning | |||||
| 02 | Guide rail | 1 | 11417548800 | $15.48 | Shop at ECS Tuning | |||||
| 03 | Sprocket | 1 | 11317502180 | $15.63 | Shop at ECS Tuning | |||||
| 04 | Chain tensioner | 1 | 11417505842 | $40.88 | Shop at ECS Tuning | |||||
| 05 | Sprocket | 1 | 11317507551 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | M10X1-LH | 1 | 11417506378 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X30-Z2 | 1 | 07119903489 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X55-Z2 | 1 | 07119903488 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M6X37-Z1 | 1 | 07119903595 | Shop at ECS Tuning |
