Cooling System Water Hoses for BMW 3 Series E90 318i (2008)

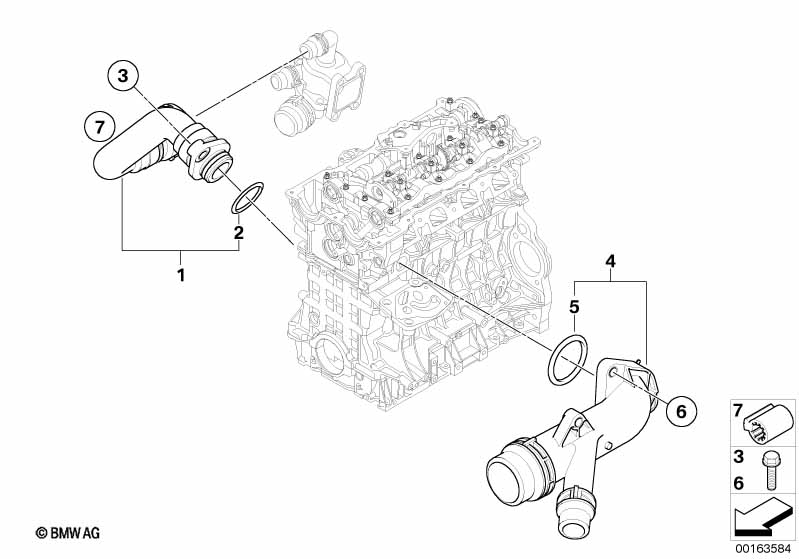

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Coolant and heating hoses see main section 17 and 64 |
|||||||||
| 01 | Water hose | 1 | 11537572158 | $18.87 | Shop at ECS Tuning | |||||
| 02 | O-ring | 1 | 11517514939 | $2.19 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 04 | Connector | 1 | 11537560130 | $23.47 | Shop at ECS Tuning | |||||
| 05 | Profile-gasket | 1 | 11537505806 | $2.92 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X20 | 3 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 318i Cooling System Water Hoses?
- This technical diagram illustrates the Cooling System Water Hoses within the Engine group for the 3 Series E90 318i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Water hose (Part #11537572158).
- Which models use the hardware listed in this Cooling System Water Hoses?
- The hardware and components featured in the Cooling System Water Hoses are specific to the 3 Series E90 318i produced during 2008. These technical specifications ensure that parts like the Water hose (11537572158) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling System Water Hoses assembly?
- Each item in the Cooling System Water Hoses corresponds to the numbered list below the illustration. For the 3 Series E90 318i, you can identify the Water hose by locating its position on the schematic, which then links to the official BMW part number 11537572158 for the Engine section.
