Emission control-air pump for BMW 3 Series E46 316i (2004)

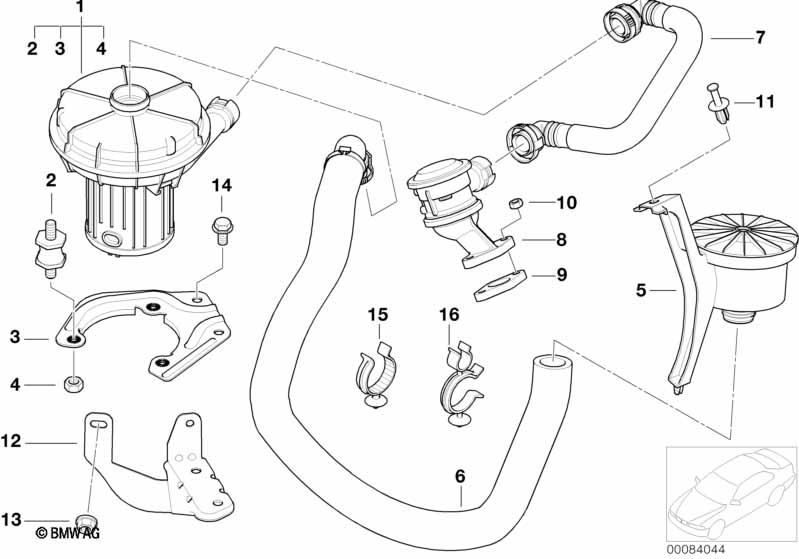

This Emission control-air pump technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air pump | 1 | 11727506209 | Shop at ECS Tuning | ||||||
| 03 | Secondary air pump bracket | 1 | 11727506380 | Shop at ECS Tuning | ||||||
| 04 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Secondary air filter | 1 | 11721716578 | $15.60 | +core | Shop at ECS Tuning | ||||
| 06 | Suction hose | 1 | 11727515696 | +core | Shop at ECS Tuning | |||||
| 07 | Pressure hose assy | 1 | 11727510428 | $17.14 | Shop at ECS Tuning | |||||
| 08 | Valve | 1 | 11727553068 | $114.19 | Shop at ECS Tuning | |||||
| 09 | Gasket Asbestos Free | 1 | 11727510374 | $18.37 | Shop at ECS Tuning | |||||
| 10 | Self-locking hex nut | 2 | 11721742644 | $0.50 | Shop at ECS Tuning | |||||
| 11 | Expanding rivet | 1 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 12 | Holder | 1 | 11727506212 | Shop at ECS Tuning | ||||||
| 13 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M8X14 ZNNIV SI | 2 | 07119905527 | $0.47 | Shop at ECS Tuning | ||||
| 15 | Clamp | 1 | 11721716559 | $1.42 | Shop at ECS Tuning | |||||
| 16 | Tandem clamp | 2 | 11727510126 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
