Exhaust manifold for BMW 3 Series E46 318i (2005)

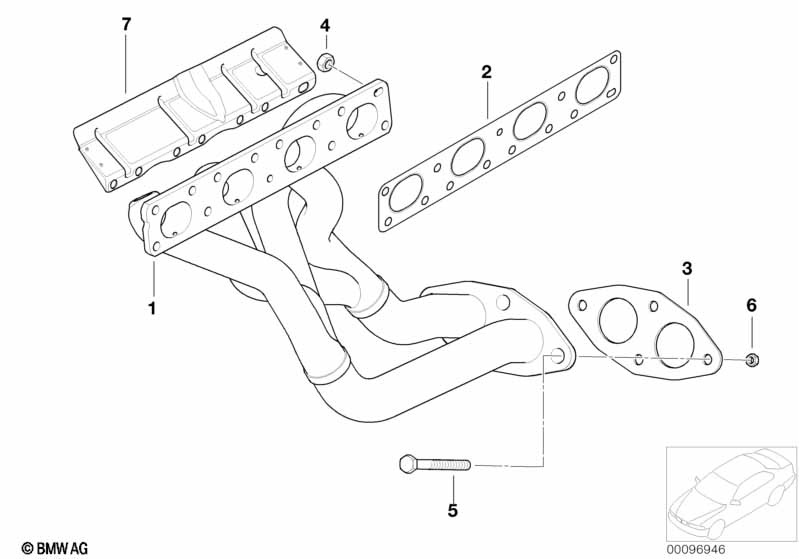

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with EU2 exhaust emissions standard and EU3 exhaust emissions standard and Equipment for leaded fuel and Automatic transmission |
S168A=Yes S169A=No S199A=No S205A=Yes |
|||||||||
| 01 | Exhaust manifold | 1 | 11627510249 | Shop at ECS Tuning | ||||||
| For vehicles with EU2 exhaust emissions standard and EU3 exhaust emissions standard and Equipment for leaded fuel and Automatic transmission |
S168A=Yes S169A=No S199A=No S205A=No |
|||||||||
| 01 | Exhaust manifold | 1 | 11627510249 | Shop at ECS Tuning | ||||||
| For vehicles with EU2 exhaust emissions standard and EU3 exhaust emissions standard and Equipment for leaded fuel and Automatic transmission |
S168A=No S169A=Yes S199A=No S205A=Yes |
|||||||||
| 01 | Exhaust manifold | 1 | 11627510249 | Shop at ECS Tuning | ||||||
| For vehicles with EU2 exhaust emissions standard and EU3 exhaust emissions standard and Equipment for leaded fuel and Automatic transmission |
S168A=No S169A=Yes S199A=No S205A=No |
|||||||||
| 01 | Exhaust manifold | 1 | 11627510249 | Shop at ECS Tuning | ||||||
| For vehicles with EU2 exhaust emissions standard and EU3 exhaust emissions standard and Equipment for leaded fuel and Automatic transmission |
S168A=No S169A=No S199A=Yes S205A=Yes |
|||||||||
| 01 | Exhaust manifold | 1 | 11627510249 | Shop at ECS Tuning | ||||||
| For vehicles with EU2 exhaust emissions standard and EU3 exhaust emissions standard and Equipment for leaded fuel and Automatic transmission |
S168A=No S169A=No S199A=Yes S205A=No |
|||||||||
| 01 | Exhaust manifold | 1 | 11627510249 | Shop at ECS Tuning | ||||||
| For vehicles with EU2 exhaust emissions standard and EU3 exhaust emissions standard and without catalytic converter and Automatic transmission |
S168A=No S169A=No S199A=No S205A=No |
|||||||||
| 01 | Exhaust manifold | 1 | 11627522904 | Shop at ECS Tuning | ||||||
| 02 | Flat gasket | 1 | 18407506778 | $18.21 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | 13 | 11721437202 | $0.72 | Shop at ECS Tuning | |||||
| 03 | Gasket | 1 | 18307506779 | $18.21 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | Hex nut | 13 | 11721437202 | $0.72 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M10X40-SW16 | 4 | 11621427586 | $21.57 | Shop at ECS Tuning | ||||
| 06 | Hex nut | M10 | 4 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 07 | Heat resistant plate | 1 | 18407547849 | Shop at ECS Tuning | ||||||
