Timing gear - Intake valve/exhaust valve for BMW M1 E26 M1 (1981)

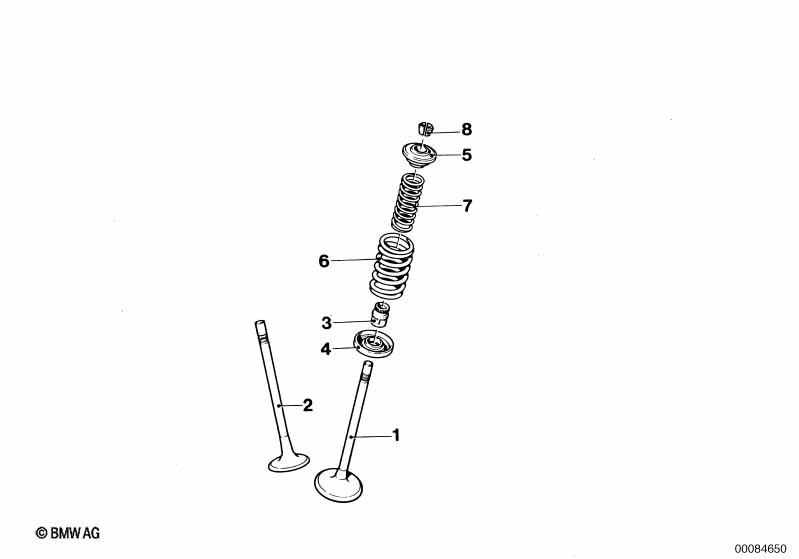

This Timing gear - Intake valve/exhaust valve technical drawing provides a detailed breakdown of the assembly for the M1 E26 M1. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake valve | D=6,975 | 12 | 11341304643 | $160.80 | Shop at ECS Tuning | ||||
| 02 | Exhaust valve | D=6,960 | 12 | 11341304644 | $187.51 | ENDED | Shop at ECS Tuning | |||
| 03 | Repair kit valve seal ring | X | 11349059171 | $35.29 | Shop at ECS Tuning | |||||
| 04 | Lower spring plate | 24 | 11341304680 | $14.60 | ENDED | Shop at ECS Tuning | ||||
| 05 | Upper spring plate | 24 | 11341304270 | $26.19 | Shop at ECS Tuning | |||||
| 06 | Valve spring | 24 | 11341304771 | $25.49 | ENDED | Shop at ECS Tuning | ||||
| 07 | Valve spring | 24 | 11341304772 | $22.88 | ENDED | Shop at ECS Tuning | ||||
| 08 | Valve collet | 48 | 11341307136 | $1.08 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
