Oil filter for BMW M1 E26 M1 (1981)

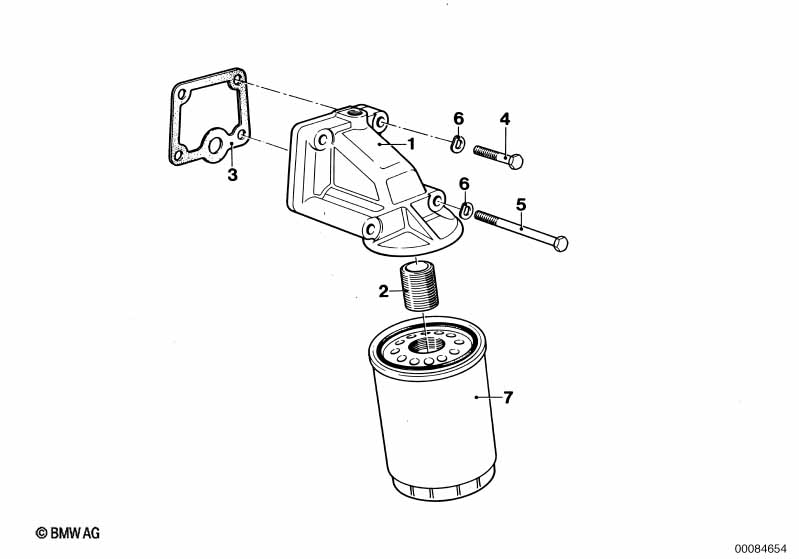

This Oil filter technical drawing provides a detailed breakdown of the assembly for the M1 E26 M1. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter head | 1 | 11421304396 | $221.11 | Shop at ECS Tuning | |||||
| 02 | Connector | 1 | 11421304414 | $7.48 | ENDED | Shop at ECS Tuning | ||||
| 03 | Gasket Asbestos Free | 1 | 11421730264 | $2.47 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M8X30-ZN | 2 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Oil filter | 1 | 11421304423 | $46.00 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW M1 E26 M1 Oil filter?
- This technical diagram illustrates the Oil filter within the Engine group for the M1 E26 M1 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Oil filter head (Part #11421304396).
- Which models use the hardware listed in this Oil filter?
- The hardware and components featured in the Oil filter are specific to the M1 E26 M1 produced during 1981. These technical specifications ensure that parts like the Oil filter head (11421304396) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil filter assembly?
- Each item in the Oil filter corresponds to the numbered list below the illustration. For the M1 E26 M1, you can identify the Oil filter head by locating its position on the schematic, which then links to the official BMW part number 11421304396 for the Engine section.
