Lubrication syst., oil tank for BMW M1 E26 M1 (1981)

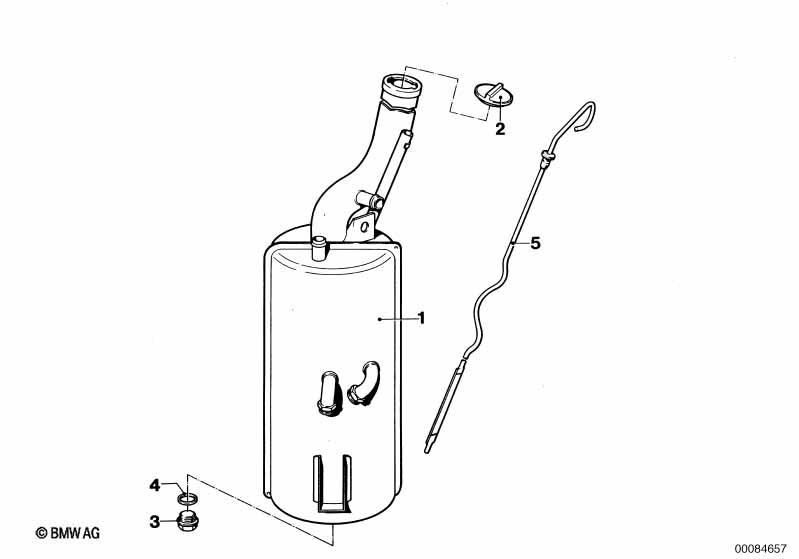

This Lubrication syst., oil tank technical drawing provides a detailed breakdown of the assembly for the M1 E26 M1. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil carrier | 1 | 11431304531 | $4032.10 | Shop at ECS Tuning | |||||
| 02 | Filler cap without lock | 1 | 16111118379 | $6.94 | Shop at ECS Tuning | |||||
| 03 | Screw plug | M24X1,5 | 1 | 07119919134 | $7.14 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A24X29-AL | 1 | 07119963384 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Dipstick | 1 | 11431304546 | $32.73 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW M1 E26 M1 Lubrication syst., oil tank?
- This technical diagram illustrates the Lubrication syst., oil tank within the Engine group for the M1 E26 M1 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Oil carrier (Part #11431304531).
- Which models use the hardware listed in this Lubrication syst., oil tank?
- The hardware and components featured in the Lubrication syst., oil tank are specific to the M1 E26 M1 produced during 1981. These technical specifications ensure that parts like the Oil carrier (11431304531) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubrication syst., oil tank assembly?
- Each item in the Lubrication syst., oil tank corresponds to the numbered list below the illustration. For the M1 E26 M1, you can identify the Oil carrier by locating its position on the schematic, which then links to the official BMW part number 11431304531 for the Engine section.
