Water pump, valve, hoses for BMW M1 E26 M1 (1981)

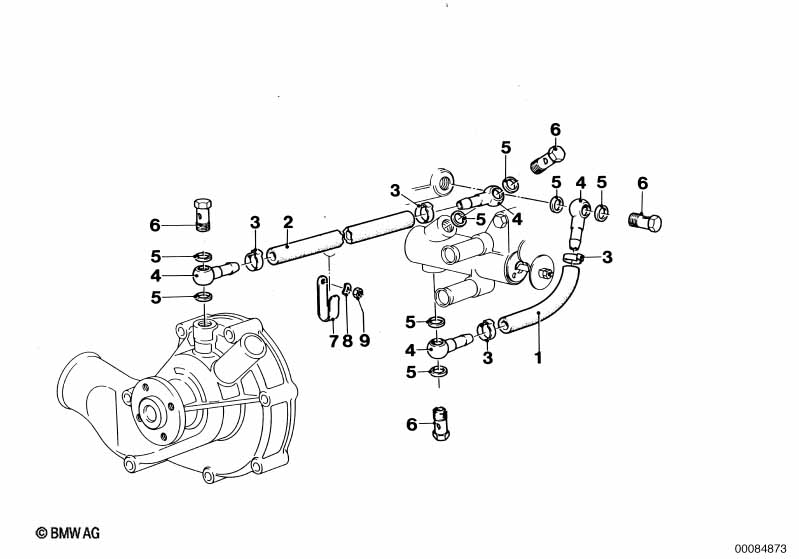

This Water pump, valve, hoses technical drawing provides a detailed breakdown of the assembly for the M1 E26 M1. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel hose | 8X13MM | 1 | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 02 | Fuel hose | 8X13MM | 1 | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | 11,8-13,8MM | 4 | 16121116458 | $0.91 | ENDED | Shop at ECS Tuning | |||
| 04 | Connector | D=10MM | 4 | 11531304418 | $5.47 | ENDED | Shop at ECS Tuning | |||
| 05 | Gasket ring | A10X13,5-CU | 8 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Hollow bolt | 4 | 11421304424 | $2.96 | Shop at ECS Tuning | |||||
| 07 | Clamp | 1 | 13541305072 | $1.67 | ENDED | Shop at ECS Tuning | ||||
| 08 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
