Lower timing case for BMW 5 Series E60 LCI 520d (2008)

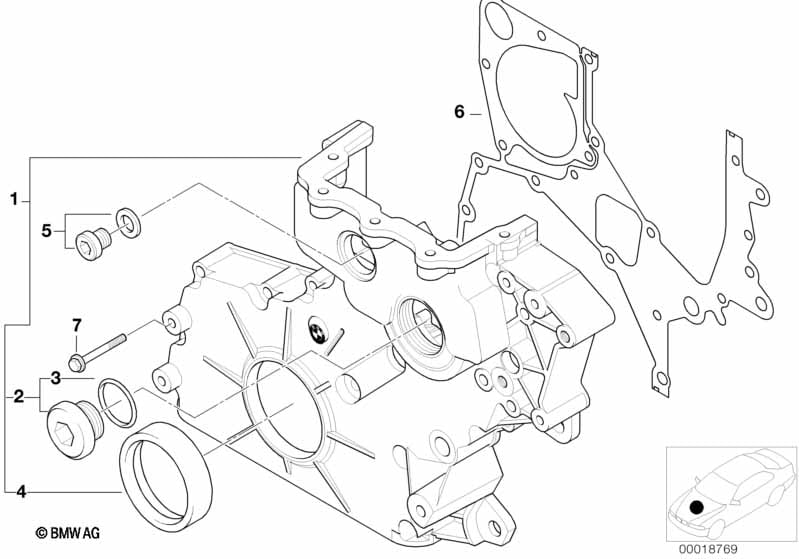

This Lower timing case technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing case cover, bottom | 1 | 11147786874 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | Screw Plug With Gasket Ring | M40X1,5 | 1 | 11142247286 | $10.70 | Shop at ECS Tuning | ||||
| 03 | O-ring | 35X2,0 | 1 | 11142247660 | $3.62 | Shop at ECS Tuning | ||||
| 04 | Shaft seal | 55X68X8 | 1 | 11142249534 | $29.38 | Shop at ECS Tuning | ||||
| 05 | Screw Plug With Gasket Ring | M30X1 | 1 | 11142248640 | $7.57 | Shop at ECS Tuning | ||||
| 06 | Gasket Steel | 1 | 11147792943 | $29.38 | Shop at ECS Tuning | |||||
| 07 | Torx screw with collar | M7X38 | 14 | 11517789351 | Shop at ECS Tuning | |||||
