Crankshaft drive mass compensator for BMW 5 Series E60 520d (2007)

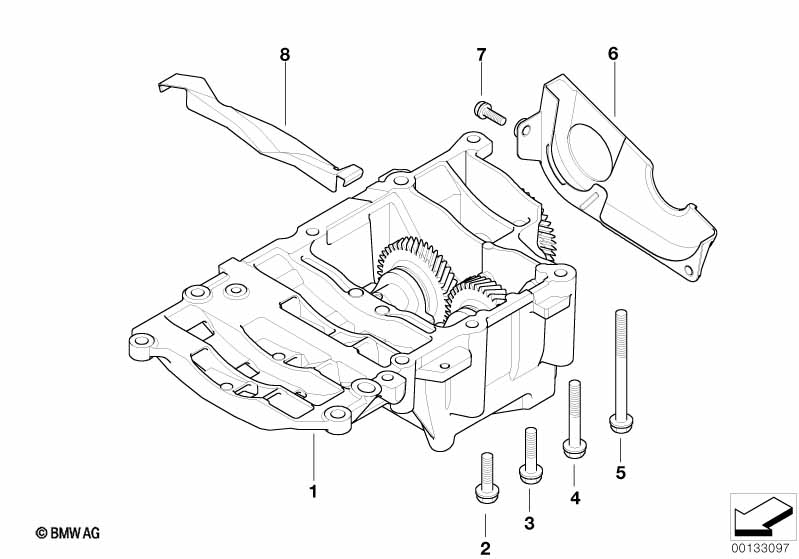

This Crankshaft drive mass compensator technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mass compensator | 1 | 11277793886 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt with washer | M8X30-ZNNIV SI | 3 | 07119905532 | $1.25 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X40-U1-8.8 | 1 | 07119904514 | $0.49 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X55-U1 | 1 | 07119905391 | $1.27 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X95-10.9-ZNS3 | 4 | 07119904996 | $1.53 | Shop at ECS Tuning | ||||
| 06 | Cover, mass compensator | 1 | 11277787504 | Shop at ECS Tuning | ||||||
| 07 | Fillister head with washer | M6X16-U1-PHR | 2 | 07119906059 | Shop at ECS Tuning | |||||
| 08 | Cover, synchromesh stage | 1 | 11277787517 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 520d Crankshaft drive mass compensator?
- This technical diagram illustrates the Crankshaft drive mass compensator within the Engine group for the 5 Series E60 520d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Mass compensator (Part #11277793886).
- Which models use the hardware listed in this Crankshaft drive mass compensator?
- The hardware and components featured in the Crankshaft drive mass compensator are specific to the 5 Series E60 520d produced during 2007. These technical specifications ensure that parts like the Mass compensator (11277793886) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankshaft drive mass compensator assembly?
- Each item in the Crankshaft drive mass compensator corresponds to the numbered list below the illustration. For the 5 Series E60 520d, you can identify the Mass compensator by locating its position on the schematic, which then links to the official BMW part number 11277793886 for the Engine section.
