Cooling System Water Hoses for BMW 3 Series E46 320Cd (2006)

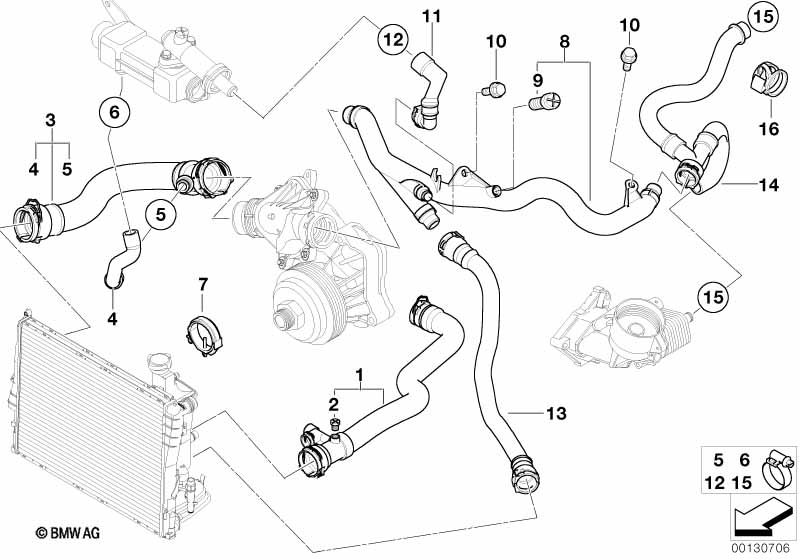

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Heater water hose see main section 64 |
|||||||||
| For vehicles with EU4 exhaust emissions standard or Automatic transmission |
S167A=Yes S205A=Yes |
|||||||||
| 01 | Water hose | 1 | 11532249778 | Shop at ECS Tuning | ||||||
| 02 | Vent screw | M10 | 1 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| For vehicles with EU4 exhaust emissions standard |
S167A=Yes |
|||||||||
| 03 | Water hose | 1 | 11537789718 | +core | Shop at ECS Tuning | |||||
| For vehicles with EU4 exhaust emissions standard and Automatic transmission |
S167A=No S205A=Yes |
|||||||||
| 03 | Water hose | 1 | 11537787916 | +core | Shop at ECS Tuning | |||||
| For vehicles with EU4 exhaust emissions standard |
S167A=Yes |
|||||||||
| 04 | Hose, EGR radiator fork | 1 | 17127789600 | +core | Shop at ECS Tuning | |||||
| For vehicles with EU4 exhaust emissions standard and Automatic transmission |
S167A=No S205A=Yes |
|||||||||
| 04 | Water hose | 1 | 11537786724 | Shop at ECS Tuning | ||||||
| For vehicles with EU4 exhaust emissions standard or Automatic transmission |
S167A=Yes S205A=Yes |
|||||||||
| 05 | Hose clamp | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | 1 | 11531714433 | $2.39 | Shop at ECS Tuning | |||||
| 08 | Pipe, heater return-hose connection | 1 | 11537802632 | $59.75 | Shop at ECS Tuning | |||||
| 09 | Vent screw | M10 | 1 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| 10 | Collar screw | M6X18-ZNS3 | 2 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
| 11 | Hose for EGR cooler | 1 | 03/2003 | 11537792622 | $11.33 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hose clamp | L16-30 | 1 | 03/2003 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 12 | Hose clamp | L16-30 | 1 | 03/2003 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 13 | Water hose | 1 | 11532249780 | Shop at ECS Tuning | ||||||
| 14 | Water hose | 1 | 11537787405 | +core | Shop at ECS Tuning | |||||
| 15 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 16 | Hose clamp | 1 | 64216900585 | $1.13 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
