Exhaust manifold-AGR for BMW 3 Series E90 320d (2007)

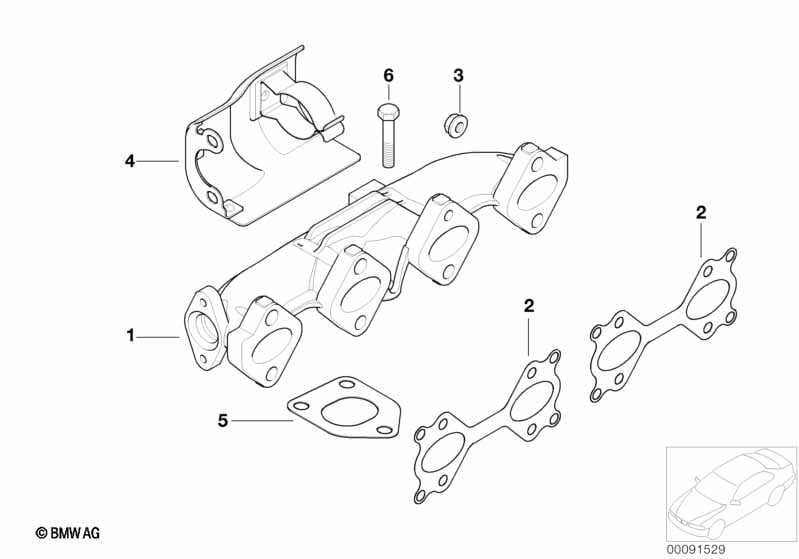

This Exhaust manifold-AGR technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold | 1 | 11627791762 | +core | Shop at ECS Tuning | |||||
| 02 | Gasket Steel | 2 | 11627798177 | Shop at ECS Tuning | ||||||
| 03 | Flange nut | M8 | 8 | 11627789015 | $0.43 | Shop at ECS Tuning | ||||
| 05 | Gasket Asbestos Free | 1 | 11627795266 | $10.94 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Screw | M10X25 | 3 | 11652243402 | $5.37 | Shop at ECS Tuning | ||||
| 06 | Screw | M10X25 | 3 | 02/2025 | 11652243402 | $5.37 | Shop at ECS Tuning | |||
| 06 | Screw | M10X25 | 3 | 07145B5ABD4 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
